23 Control & Dimming > Ceiling-Mounted Motion Sensors

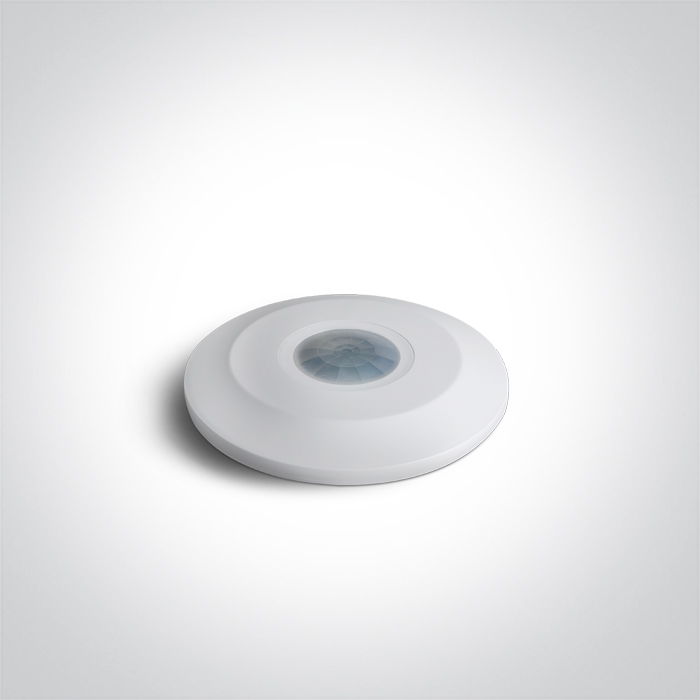

22004P
230V 800W (LED) 1600W (Incandescent) Surface mounted infrared motion & presence sensor.
Time delay, daylight sensor and detection distance are adjustable.
Complies with standard EN60669 and any other specific standards.
Time delay, daylight sensor and detection distance are adjustable.
Complies with standard EN60669 and any other specific standards.

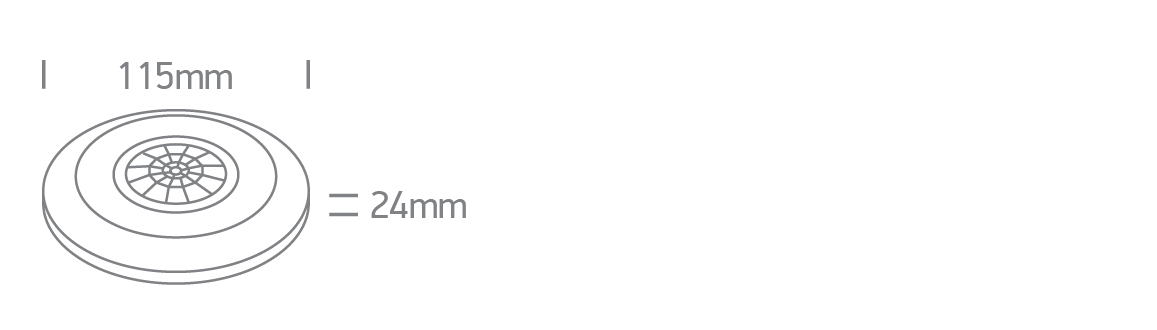

Dimensions
Downloads
Physical Specification
Item Group
23 Control & Dimming
Family
Ceiling-Mounted Motion Sensors
Order Code
22004P
Material
PC
Shape
Circular
Height
24mm
Diameter
115mm
Surface Ceiling
Yes
Indoor
Yes
Electrical Characteristics
Sensor
Input Voltage
220-240V
Power (Watts)
800W (LED) / 1600W (Incandescent)
Safety Class
Motion
Yes
Brightness
Yes
Detection Angle
360°
Detection Distance
6m diameter maximum (adjustable)
Time Delay
10sec ± 3sec to 15min ± 2min (adjustable)
Installation height
2,2-4m
Packing Info
Pcs/Carton
50
Barcode
5291889088936
HS Code
8536309090
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
26
