23 Control & Dimming > DALI & Push to DIM To TRIAC
89104LT
Dali/Push to Dim to Triac converter suitable for Triac dimmable lamps and fittings.
Complies with standard EN61347-1 and any other specific standards.
Complies with standard EN61347-1 and any other specific standards.

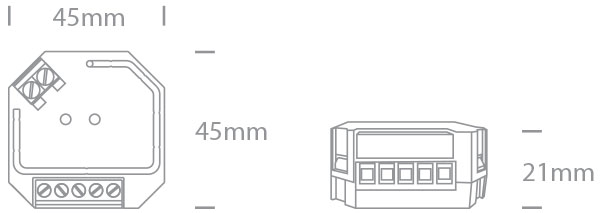

Dimensions
Downloads
Physical Specification
Item Group
23 Control & Dimming
Family
DALI & Push to DIM To TRIAC
Order Code
89104LT
Material
Plastic
Shape
Rectangular
Length
45mm
Width
45mm
Height
21mm
Indoor
Yes
Electrical Characteristics
Gear
Gear Type
Led Controller
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
100w@110v 200w@230v
IP Rating
IP20
Dimmable
Yes
Dimmer type
Dali, Push to Dim
Housing Material
Plastic
Output Terminal
Connector
Packing Info
Box Length
5,5cm
Box Width
5,5cm
Box Height
3,5cm
Box Weight
0.060kg
Pcs/Carton
50
Barcode
5291889070191
HS Code
8504408390
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
