18 Wall Recessed & Inground > Outdoor Dark Light Wall Recessed CCT V
68068B/AN/V

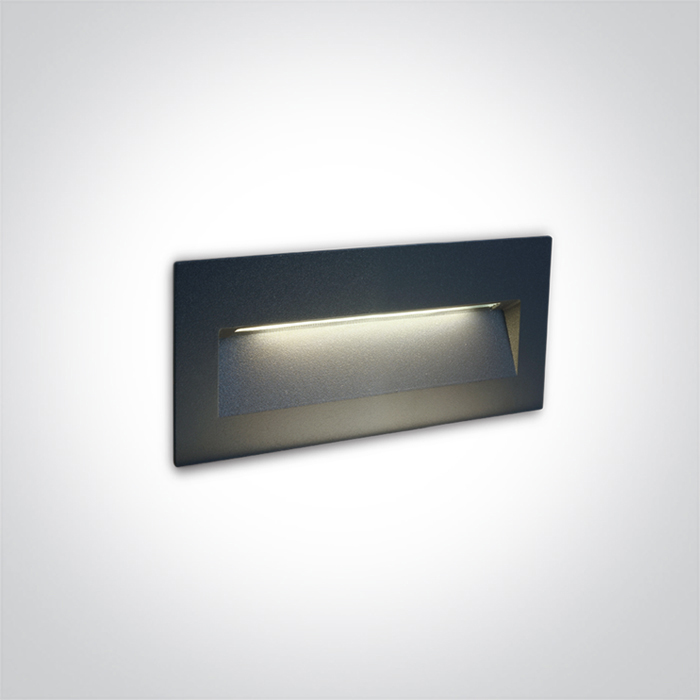

6W CCT Variable LED wall recessed light.
Complete with non-dimmable driver.
Supplied with box for concrete installation.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable driver.
Supplied with box for concrete installation.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
18 Wall Recessed & Inground
Family
Outdoor Dark Light Wall Recessed CCT V
Order Code
68068B/AN/V
Colour
Anthracite
Material
Aluminium
Shape
Rectangular
Length
150mm
Width
75mm
Height
55mm
Cutout Hole Width
145mm Concrete 130mm Gypsum
Cutout Hole Height
70mm Concrete 60mm Gypsum
Recessed wall
Yes
Depth Required
80mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
6W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Light Source
LED built in
LED Type
SMD
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Output
300mA
Illumination Data
Colour Code
2200K-2700K-3000K-4000K
Lumen Output
400lm
Light Efficiency
66,67lm/W
CRI
80
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
Box Width
Box Height
Box Weight
0.550kg
Pcs/Carton
12
Barcode
5291889088813
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
26
