15 Decorative > LED Circle Rings

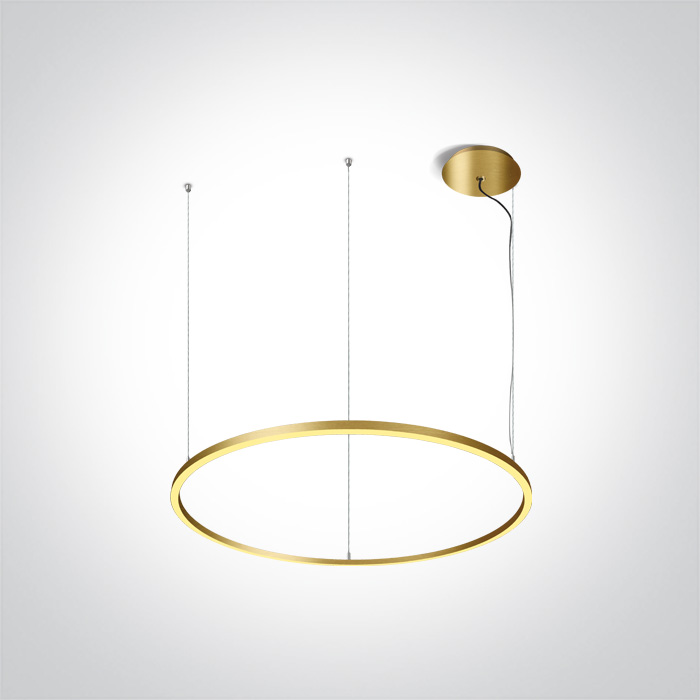

62156C/BBS/W
65W LED Pendant , IP20 suitable for residential and commercial application.
Complete with 1600mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 1600mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
15 Decorative
Family
LED Circle Rings
Order Code
62156C/BBS/W
Colour
Brushed Brass
Material
Aluminium
Shape
Circular
Height
3000mm
Diameter
1270mm
Suspended Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
65W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
1600mA
Voltage
36V
Power (Watts)
56W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Bridgelux
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
44,8-57,6W
Power Factor
0,9
Constant Current
Yes
1600mA
28-36V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
4300lm
Light Efficiency
66,15lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
4.600kg
Pcs/Carton
1
Carton Weight
5,7Kg
Barcode
5291889072386
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
