20 Industrial & Floodlights > The Supermarket LED Linear Range Aluminium

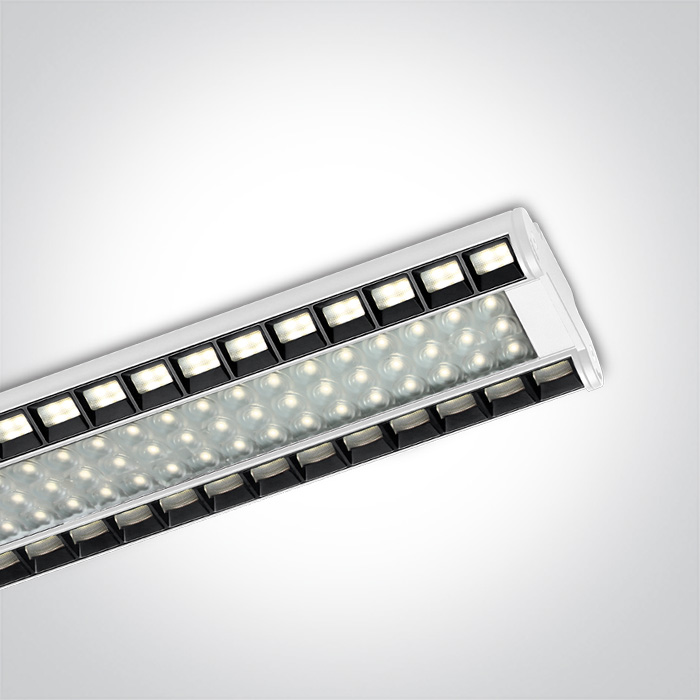

38280/W/C
80W adjustable supermarket linear light.

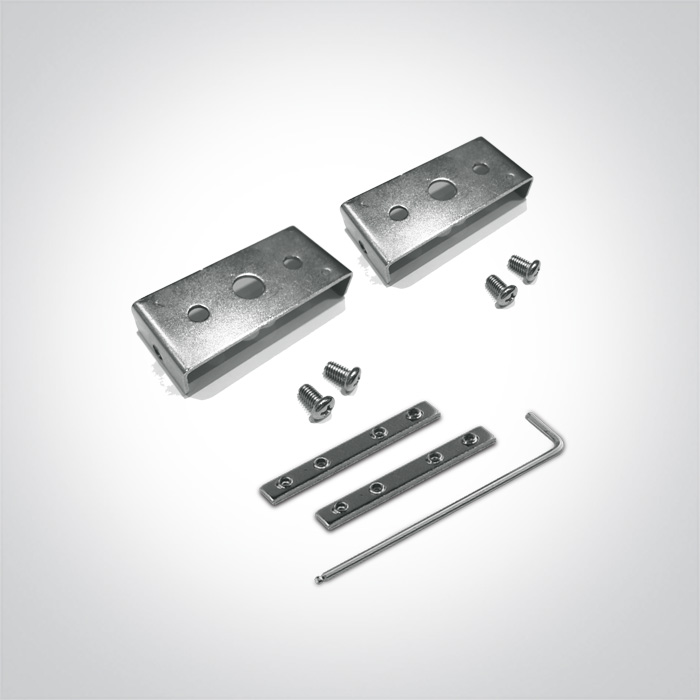

Complete with 2 Fixing clips, 2 Connectors & 2 Suspension kits.
Complies with standard EN60598-1 and any other specific standards.
Complete with 2 Fixing clips, 2 Connectors & 2 Suspension kits.
Complies with standard EN60598-1 and any other specific standards.

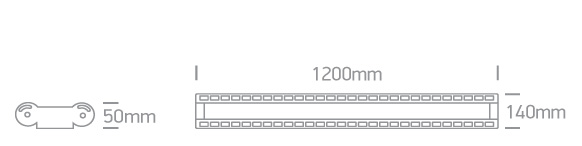

Dimensions
Downloads
Physical Specification
Item Group
20 Industrial & Floodlights
Family
The Supermarket LED Linear Range Aluminium
Order Code
38280/W/C
Colour
White
Material
Aluminium
Shape
Rectangular
Length
1200mm
Width
140mm
Height
50mm
Surface Ceiling
Yes
Suspended Ceiling
Yes
Indoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
80W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
600mA+1500mA
Safety Class
Power (Watts)
80W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 3030/2835
LED Brand
Epistar
LED Number
168
Gear
Gear Type
Led Driver
Input Voltage
220-240V
Power (Watts)
16,8-22,8W & 42-60W
Power Factor
0,95
Constant Current
Yes
600mA
28-38V
1500mA
28-40V
IP Rating
IP20
Ambient Temp
0
Operating Temp
0
Illumination Data
Colour Temperature
4000K
Lumen Output
7400lm
Light Efficiency
92,5lm/W
CRI
90
Illumination Diagram
Packing Info
Box Weight
5.075kg
Pcs/Carton
4
Barcode
5291889072911
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
