New 2025 Edition 2 > Office & Kitchen

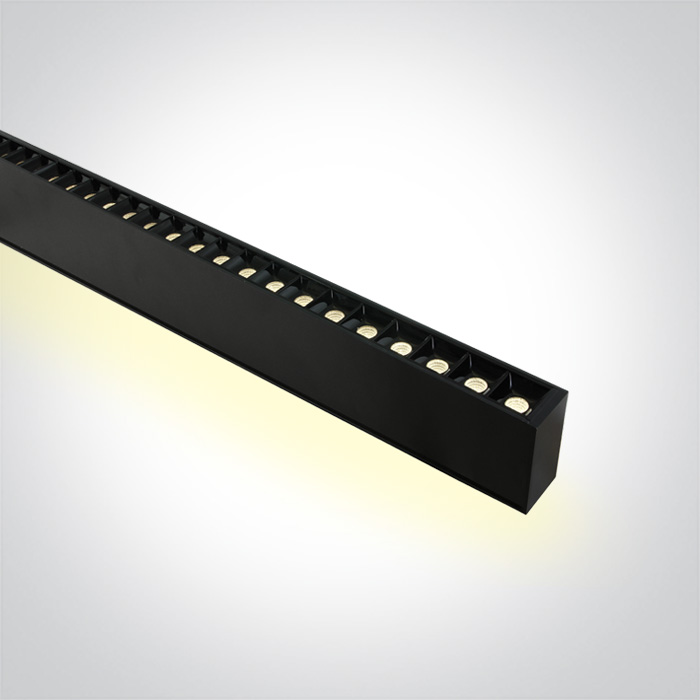

38150BU/B/V
CCT and Power variable 40W UGR17 Linear system with with 48 LED spots and uplight for suspended installation, ideal for offices.
Complete with 2 x power variable drivers.
Complies with standard EN60598-1 and any other specific standards.
Complete with 2 x power variable drivers.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 2
Family
Office & Kitchen
Order Code
38150BU/B/V
Colour
Black
Material
Aluminium
Shape
Rectangular
Length
1300mm
Width
35mm
Height
70mm
Suspended Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
20W-30W-40W + 16W-20W-25W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
Cable Length
300cm
F Mark
Fitting
Input Type
Constant Current
IP Rating
IP20
Light Source
LED built in
LED Type
SMD
LED Number
48
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
IP Rating
IP20
Dimmable
No
Illumination Data
Colour Temperature
3000K-4000K-5000K
Lumen Output
3800lm (40W) / 1800lm (20W)
Light Efficiency
95lm/W / 90lm/W
CRI
90
Beam Angle
34°/120°
Illumination Diagram
Dark Light
Yes
Packing Info
Pcs/Carton
12
Barcode
5291889082507
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
24
