20 Industrial & Floodlights > The Supermarket Linear System CCT V & PV
.jpg)

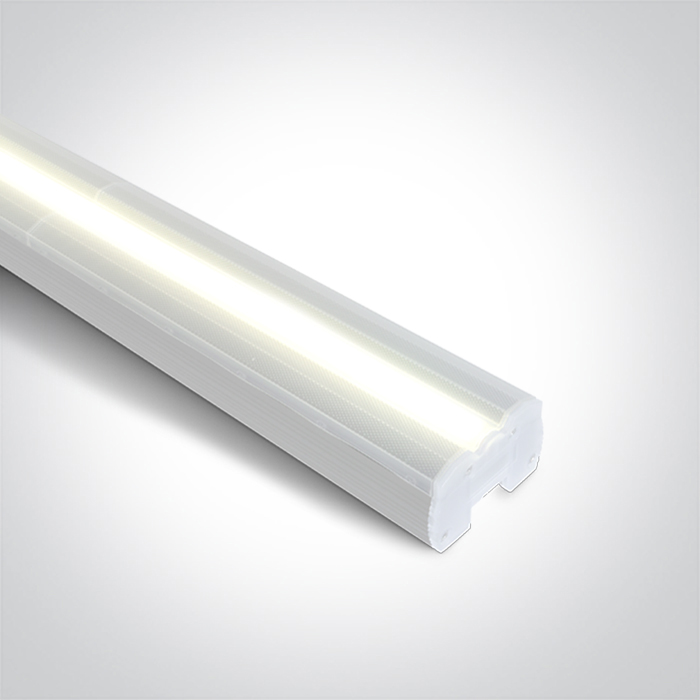

38100B/W/V
40W LED CCT & Power variable fitting.
Maximum 600W can be connected together.

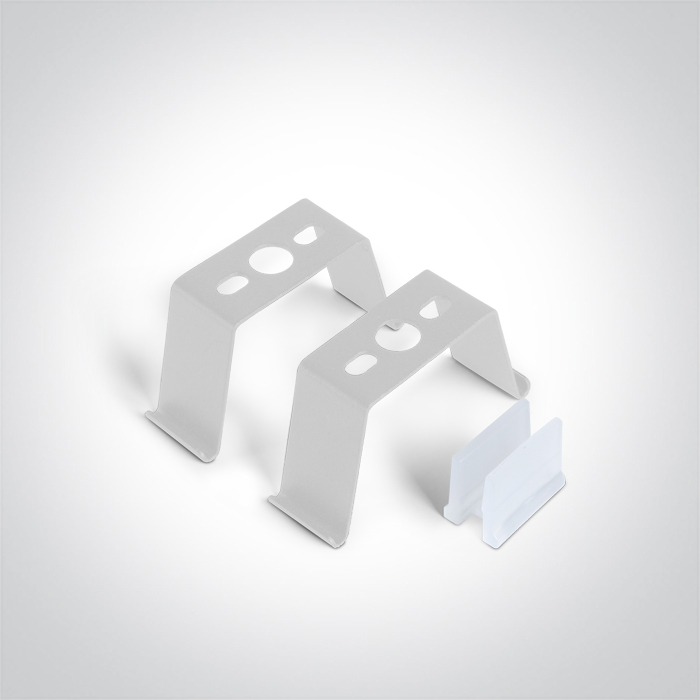

Complete with 2 pcs fixing clips & plastic connector.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Maximum 600W can be connected together.
Complete with 2 pcs fixing clips & plastic connector.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

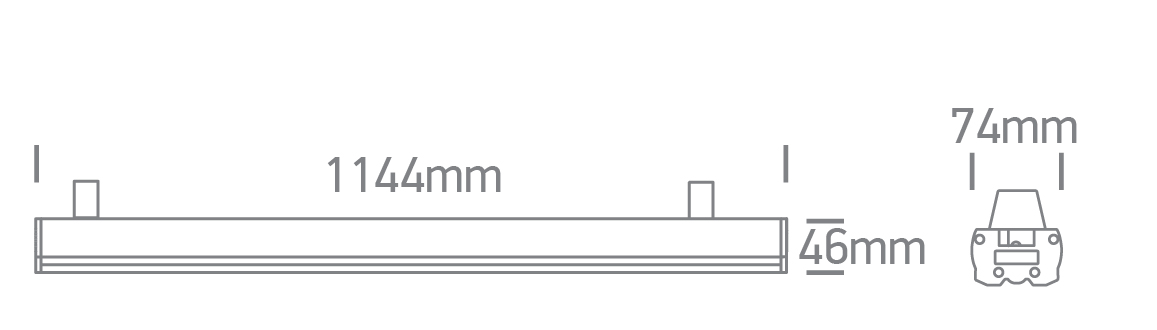

Dimensions
Downloads
Physical Specification
Item Group
20 Industrial & Floodlights
Family
The Supermarket Linear System CCT V & PV
Order Code
38100B/W/V
Colour
White
Material
Aluminium
Shape
Rectangular
Length
1144mm
Width
74mm
Height
46mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
23W/28W/34W/40W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Light Source
LED built in
LED Type
SMD
Cable Length
140cm
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Dimmable
No
Illumination Data
Colour Temperature
3000K-4000K-5000K
Lumen Output
5200@40W
Light Efficiency
130lm/W
CRI
90
Beam Angle
110°
Illumination Diagram
Packing Info
Box Weight
1.600kg
Pcs/Carton
10
Barcode
5291889092872
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
26
