New 2025 Edition 3 > Office & Kitchen
38012A/W/V
40W CCT Variable 30x120cm LED suspended downlight + uplight panel.
55% downwards emission / 45% upwards emission.
Aluminium body with PMMA diffuser.

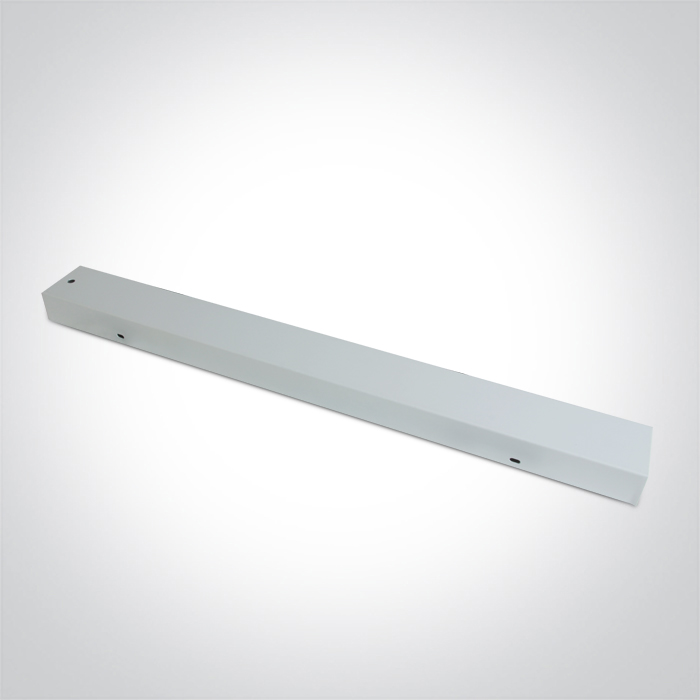

Complete with ceiling mounted driver-box including non-dimmable driver and 2m suspension kit.
Complies with standard EN60598-1 and any other specific standards.
55% downwards emission / 45% upwards emission.
Aluminium body with PMMA diffuser.
Complete with ceiling mounted driver-box including non-dimmable driver and 2m suspension kit.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 3
Family
Office & Kitchen
Order Code
38012A/W/V
Colour
White
Material
Aluminium
Diffuser Material
Plastic
Shape
Rectangular
Length
1195mm
Width
295mm
Height
18mm
Suspended Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
40W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Light Source
LED built in
LED Type
SMD
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Output
1050mA
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
3000K-4000K-5700K
Lumen Output
4000lm
Light Efficiency
100lm/W
CRI
90
Illumination Diagram
Packing Info
Box Weight
3.800kg
Pcs/Carton
4
Barcode
5291889083184
HS Code
9405119090
Energy Label
Certification & Warranty
Warranty
3 years
Average Lifetime
60,000Hrs L70B50
Wee Directive
Yes
Year in which the CE mark was affixed
25
