ONE Light

    • 22 Drivers > Adjustable Constant Current DALI Dimmable Range

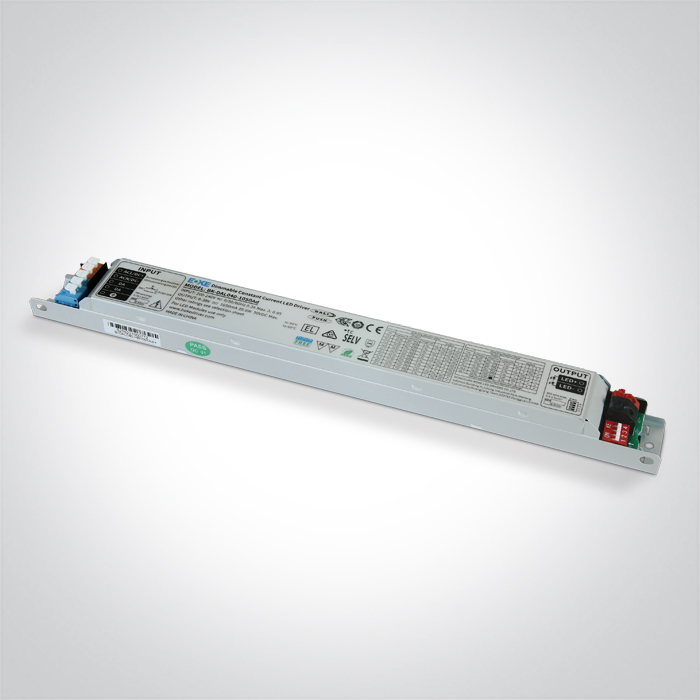

    89050LL
    89050LL
    DALI & Push to DIM LED driver.

    Adjustable output using DIP switches.

    Complies with standard EN61347-1 and any other specific standards.
    Indoor
    IP
    Dimmable
    CE

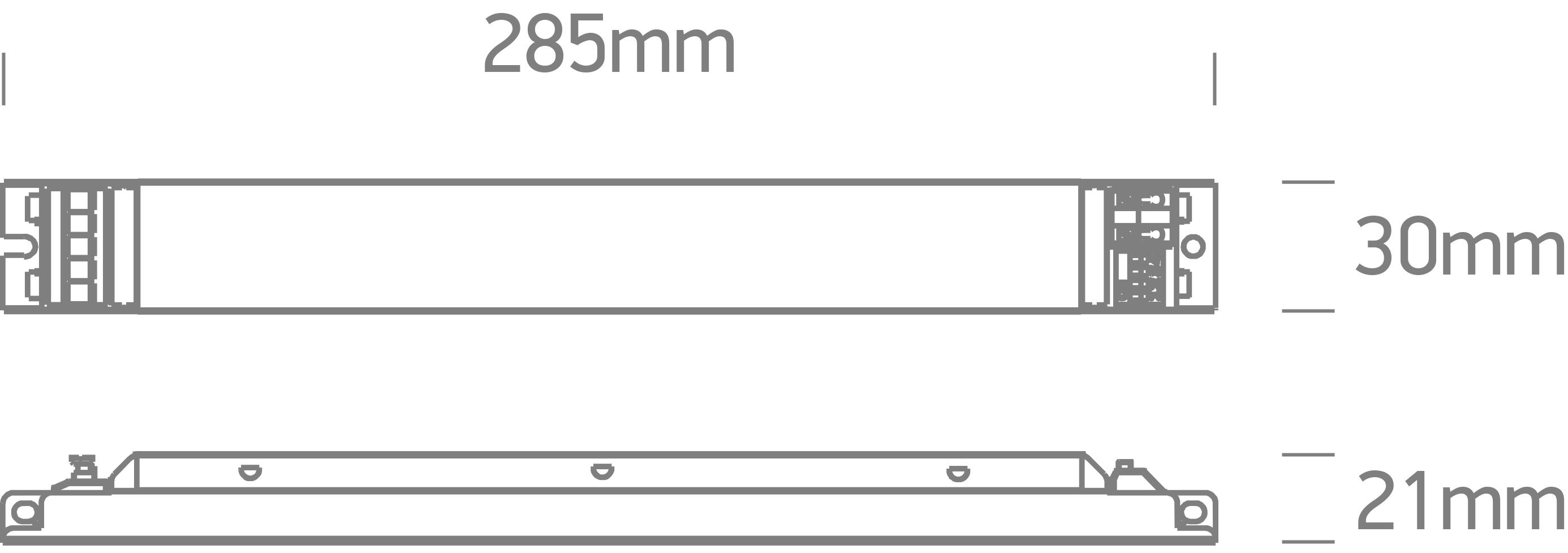

    Dimensions
    Downloads
    Product PDF Installation Manual Photo Download

    Physical Specification

    +
    Item Group
    22 Drivers
    Family
    Adjustable Constant Current DALI Dimmable Range
    Order Code
    89050LL
    Material
    Plastic
    Shape
    Rectangular
    Length
    285mm
    Width
    30mm
    Height
    21mm
    Indoor
    Yes

    Electrical Characteristics

    +
    Gear
    Gear Type
    Led Driver
    Input Voltage
    220-240V
    50 Hz
    Yes
    60 Hz
    Yes
    Power (Watts)
    Refer to table
    Power Factor
    0.95
    Constant Current
    Yes
    550mA
    6-42V
    600mA
    6-42V
    650mA
    6-42V
    700mA
    6-42V
    750mA
    6-42V
    800mA
    6-42V
    850mA
    6-42V
    900mA
    6-42V
    950mA
    6-42V
    1000mA
    6-42V
    1050mA
    6-42V
    1100mA
    6-42V
    1150mA
    6-42V
    1200mA
    6-42V
    1250mA
    6-40V
    1300mA
    6-38V
    Voltage Range
    6-42V
    IP Rating
    IP20
    Dimmable
    Yes
    Dimmer type
    Dali, Push to Dim

    Packing Info

    +
    Box Weight
    0.275kg
    Pcs/Carton
    20
    Barcode
    5291889077381
    HS Code
    8504408390

    Certification & Warranty

    +
    Warranty
    5 years
    Wee Directive
    Yes
    Year in which the CE mark was affixed
    23
