New 2025 Edition 3 > Control & Dimming
22006A

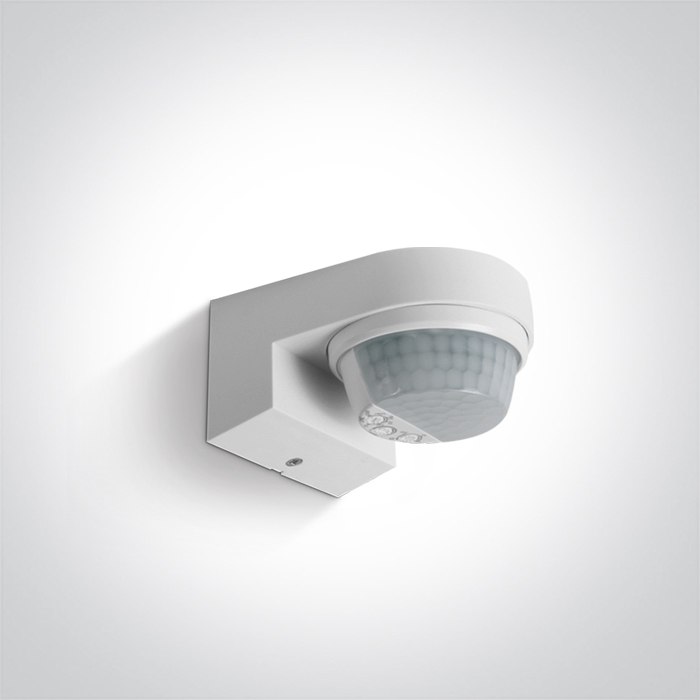

230V 800W (LED) 1500W (Incandescent) Wall mounted Infrared Motion Sensor.
Time delay, daylight sensor and detection distance are adjustable.
Complies with standard EN60669 and any other specific standards.
Time delay, daylight sensor and detection distance are adjustable.
Complies with standard EN60669 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 3
Family
Control & Dimming
Order Code
22006A
Material
PC
Shape
Rectangular
Length
100mm
Width
75mm
Height
62mm
Surface Wall
Yes
Indoor
Yes
Outdoor
Yes
Electrical Characteristics
Sensor
Input Voltage
220-240V
Power (Watts)
800W (LED) / 1500W (Incandescent)
Safety Class
Motion
Yes
Brightness
Yes
Detection Angle
240°
Detection Distance
12m maximum (adjustable)
Time Delay
10sec ± 3sec to 15min ± 2min (adjustable)
Installation height
1,8-2,5m
Packing Info
Box Weight
0.222kg
Pcs/Carton
50
Barcode
5291889083900
HS Code
8536309090
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
