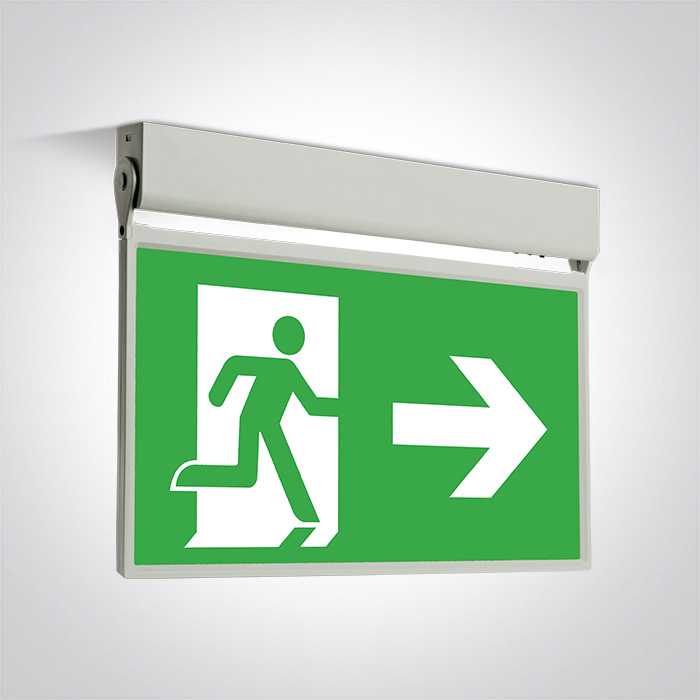

89414/W
1W LED Wall and ceiling 3-Hour Emergency Exit sign, IP20. 30m viewing distance.

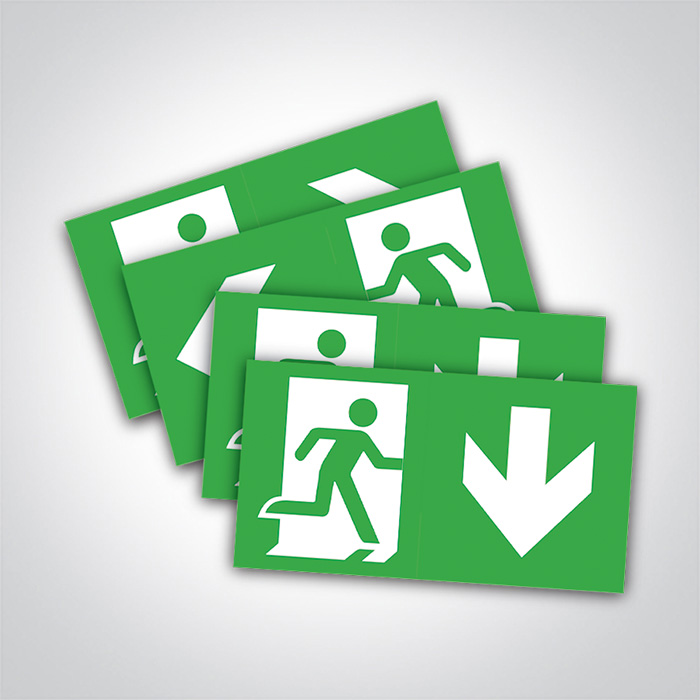

Supplied with battery, self-test and four stickers.
Can be used in Maintained & Non-Maintained modes.
Complies with standard EN60598-1 and any other specific standards.
Supplied with battery, self-test and four stickers.
Can be used in Maintained & Non-Maintained modes.
Complies with standard EN60598-1 and any other specific standards.

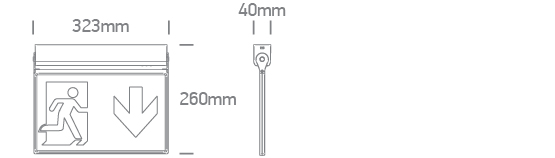

Dimensions
Downloads
Physical Specification
Item Group
21 Emergency Lights
Family
Emergency LED Wall & Ceiling
Order Code
89414/W
Colour
White
Material
PC
Shape
Rectangular
Length
323mm
Width
260mm
Height
40mm
Surface Ceiling
Yes
Surface Wall
Yes
Indoor
Yes
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
1W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Light Source
LED built in
LED Type
SMD
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Maintained
Yes
Non Maintained
Yes
Illumination Data
Colour Code
5700K
Packing Info
Box Weight
0.830kg
Pcs/Carton
10
Barcode
5291889088066
HS Code
9405114090
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
