07 Strips & Profiles > The Ultra Slim Range 24V
7843/C

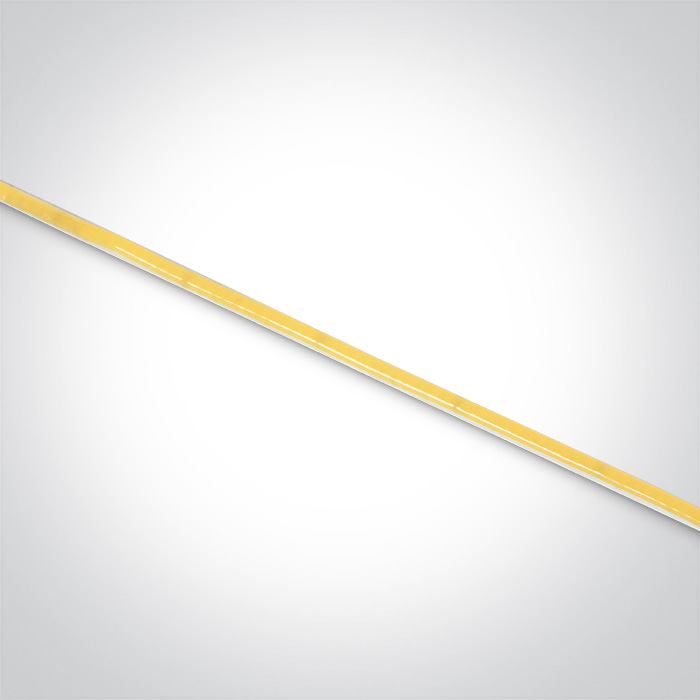

Flexible COB LED light strip, 480LEDs/meter, 4W/meter. Supplied in 5 meters roll with white PCB and double adhesive tape for a better fixing.

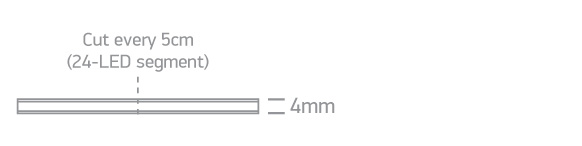

Can be cut every 5cm.
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Can be cut every 5cm.
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
07 Strips & Profiles
Family
The Ultra Slim Range 24V
Order Code
7843/C
Shape
Rectangular
Length
5000mm
Width
4mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Indoor
Yes
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
24V DC
Safety Class
Power (Watts)
4W/m
IP Rating
IP20
Light Source
LED built in
LED Type
COB
F Mark
Illumination Data
Colour Temperature
4000K
Lumen Output
440lm/m
Light Efficiency
110lm/W
CRI
90
Illumination Diagram
Packing Info
Box Weight
0.124kg
Pcs/Carton
50
Barcode
5291889072683
HS Code
9405499090
Energy Label
Energy Class
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
21
