19 Garden & Underwater > The Garden Square Spots
7052B/AN/W

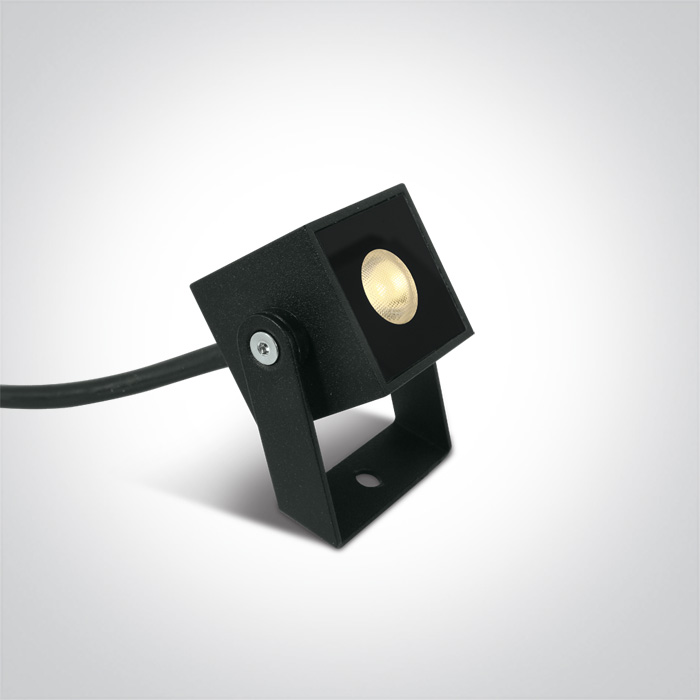

1W 24V DC outdoor LED spot, IP67, ideal for garden illumination.
Requires 24V DC driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 24V DC driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
19 Garden & Underwater
Family
The Garden Square Spots
Order Code
7052B/AN/W
Colour
Anthracite
Material
Die Cast
Shape
Rectangular
Length
40mm
Width
40mm
Height
40mm
Surface Wall
Yes
Surface Floor/Ground
Yes
Outdoor
Yes
Adjustable
1 Direction
IK Rating
2
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
24V DC
Safety Class
Power (Watts)
1W
IP Rating
IP65
Light Source
LED built in
LED Type
COB
LED Brand
Cree
Cable Length
100cm
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
80lm
Light Efficiency
80lm/W
CRI
80
Beam Angle
40°
Illumination Diagram
Packing Info
Box Weight
0.250kg
Pcs/Carton
36
Barcode
5291889060451
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
