21 Industrial & Floodlights > The LED Park Lantern Die cast
70110/AN/C

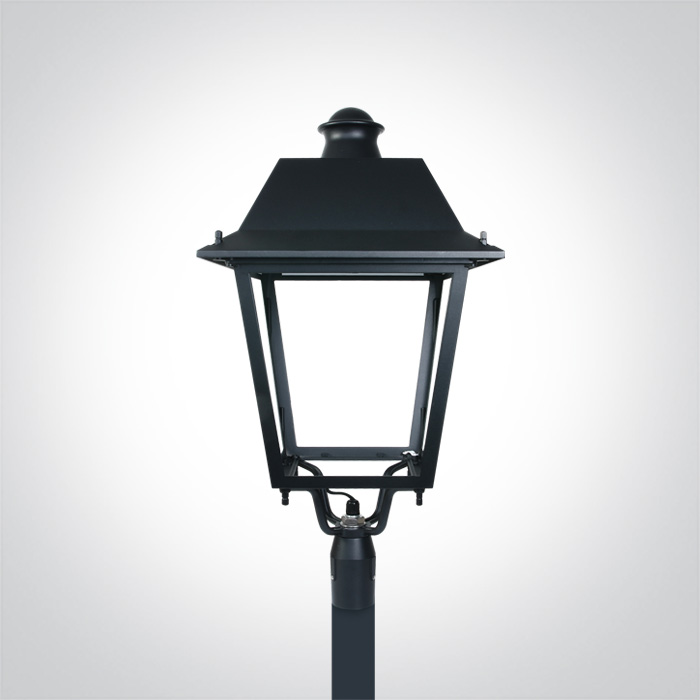

LED outdoor light for poles 3m and higher. Ideal for parks,
parkings, playgrounds.
Supplied with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.

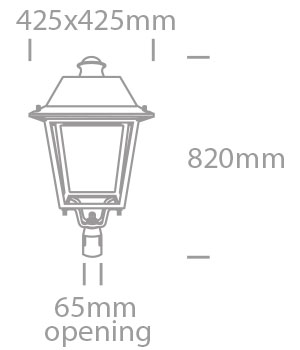

Dimensions
Downloads
Physical Specification
Item Group
21 Industrial & Floodlights
Family
The LED Park Lantern Die cast
Order Code
70110/AN/C
Colour
Anthracite
Material
Die Cast
Shape
Rectangular
Length
425mm
Width
425mm
Height
820mm
Surface Floor/Ground
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
60W
IP Rating
IP66
Light Source
LED built in
Dimmable
No
Cable Length
100cm
F Mark
Fitting
Input Type
Constant Current
Input Current
1700mA
Voltage
35V
Power (Watts)
59,5W
IP Rating
IP66
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Cree
Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
46-92W
Power Factor
0,9
Constant Current
Yes
1700mA
27-54V
IP Rating
IP65
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
4000K
Lumen Output
4500lm
Light Efficiency
75lm/W
CRI
70
Beam Angle
Assymetric
Illumination Diagram
Packing Info
Box Weight
9.800kg
Pcs/Carton
1
Barcode
5291889051688
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
16
