21 Industrial & Floodlights > The LED Park Lantern Die cast

70105/AN/C

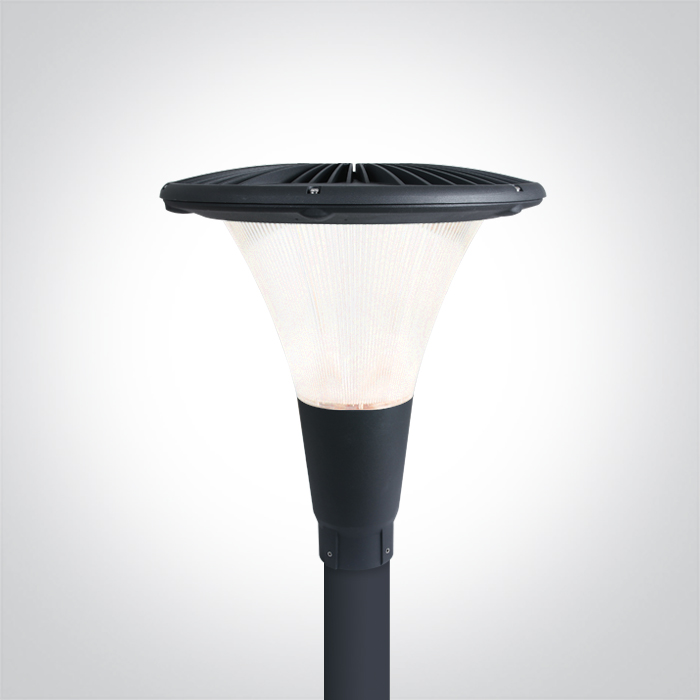

LED outdoor light for poles 3m and higher. Ideal for parks, parkings, playgrounds.

Supplied with non-dimmable driver.

Complies with standard EN60598-1 and any other specific standards.
Outdoor
IP
CRI
Beam Angle
CE
Dimensions
Downloads

Physical Specification

+
Item Group
21 Industrial & Floodlights
Family
The LED Park Lantern Die cast
Order Code
70105/AN/C
Colour
Anthracite
Material
Die Cast
Shape
Circular
Height
511mm
Diameter
460mm
Surface Floor/Ground
Yes
Outdoor
Yes
Adjustable
No

Electrical Characteristics

+
Gear
Built In
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
50W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
1700mA
Voltage
29V
Power (Watts)
49W
IP Rating
IP65
Light Source
LED built in
LED Type
COB
LED Brand
Epistar
Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
46-61,2W
Power Factor
0,9
Constant Current
Yes
1700mA
27-36V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector

Illumination Data

+
Colour Temperature
4000K
Lumen Output
4000lm
Light Efficiency
80lm/W
CRI
70
Beam Angle
60°
Illumination Diagram

Packing Info

+
Box Weight
10.400kg
Pcs/Carton
1
Barcode
5291889047469
HS Code
9405413990

Energy Label

+

Certification & Warranty

+
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
14
