18 Wall Recessed & Inground > The Inground Mini Series

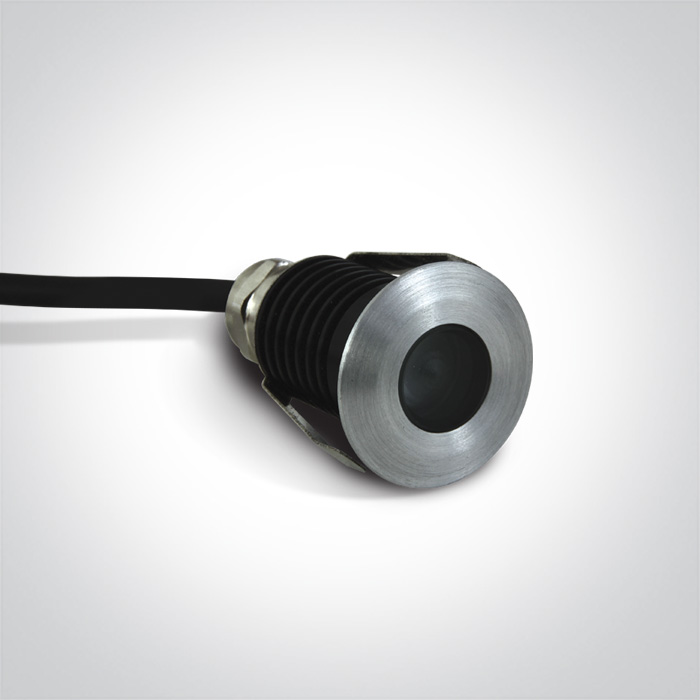

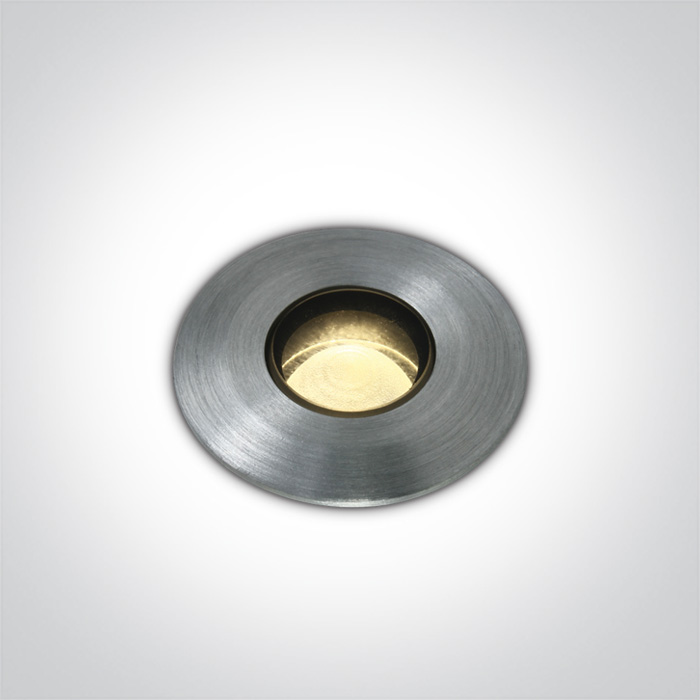

69042M/AL/W
2W LED inground, IP67, aluminium, for path illumination.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.

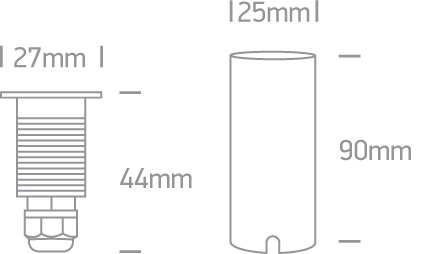

Dimensions
Downloads
Physical Specification
Item Group
18 Wall Recessed & Inground
Family
The Inground Mini Series
Order Code
69042M/AL/W
Colour
Aluminium
Material
Aluminium
Shape
Circular
Height
44mm
Diameter
27mm
Cutout Hole Diameter
22mm decking 26mm concrete
Inground
Yes
Depth Required
60mm deck 95mm+300mm drainage Concrete
Indoor
Yes
Outdoor
Yes
Adjustable
No
IK Rating
8
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
3,1V
Safety Class
Power (Watts)
2W
IP Rating
IP67
Light Source
LED built in
LED Brand
Osram
LED Number
1
Cable Length
200cm
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
150lm
Light Efficiency
75lm/W
CRI
90
Beam Angle
24°
Illumination Diagram
Packing Info
Box Weight
0.160kg
Pcs/Carton
50
Barcode
5291889061502
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
