19 Garden & Underwater > The Garden Round Spots

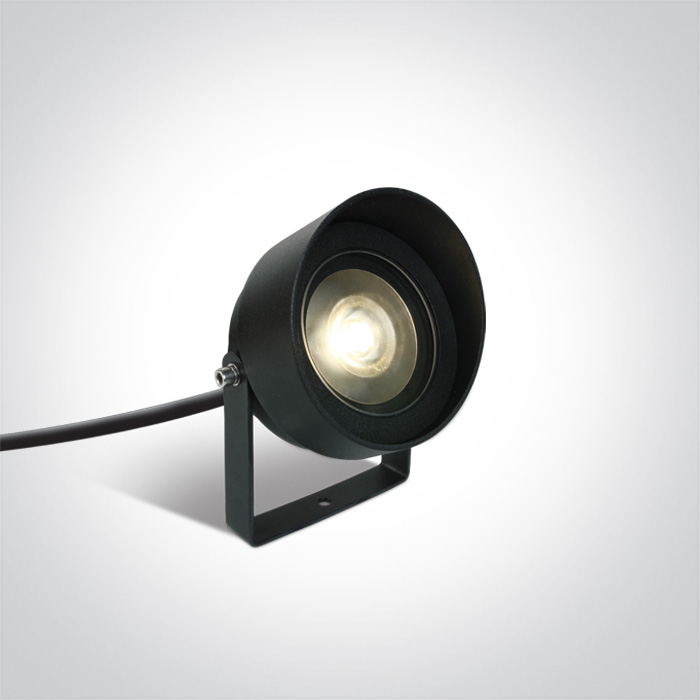

67488C/AN/W

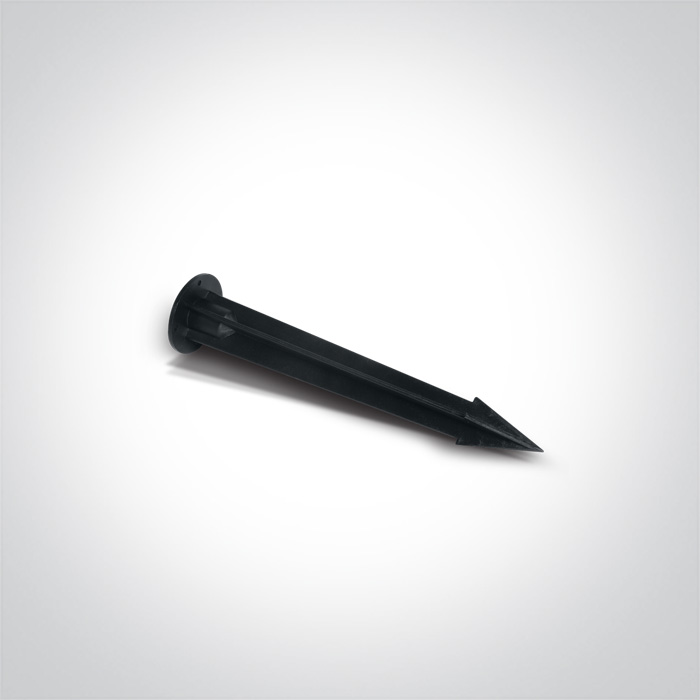

14W Garden Light with spike, IP65.
Complete with 300mA driver
Complies with standard EN60598-1 and any other specific standards.
Complete with 300mA driver
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
19 Garden & Underwater
Family
The Garden Round Spots
Order Code
67488C/AN/W
Colour
Anthracite
Material
Die Cast
Shape
Circular
Height
135mm
Diameter
124mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Outdoor
Yes
Adjustable
1 Direction
IK Rating
6
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
14W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
Cable Length
150cm
F Mark
Fitting
Input Type
Constant Current
Input Current
300mA
Voltage
45V
Power (Watts)
13,5W
IP Rating
IP65
Light Source
LED built in
LED Type
COB
LED Brand
Cree
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
9-13,5W
Power Factor
0,9
Constant Current
Yes
300mA
30-45V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K
Lumen Output
800lm
Light Efficiency
57,14lm/W
CRI
80
Beam Angle
20°
Illumination Diagram
Packing Info
Box Weight
1.650kg
Pcs/Carton
4
Barcode
5291889066132
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
