12 Wall & Ceiling LED > Dark Light Cylinders Tubes
.jpg)

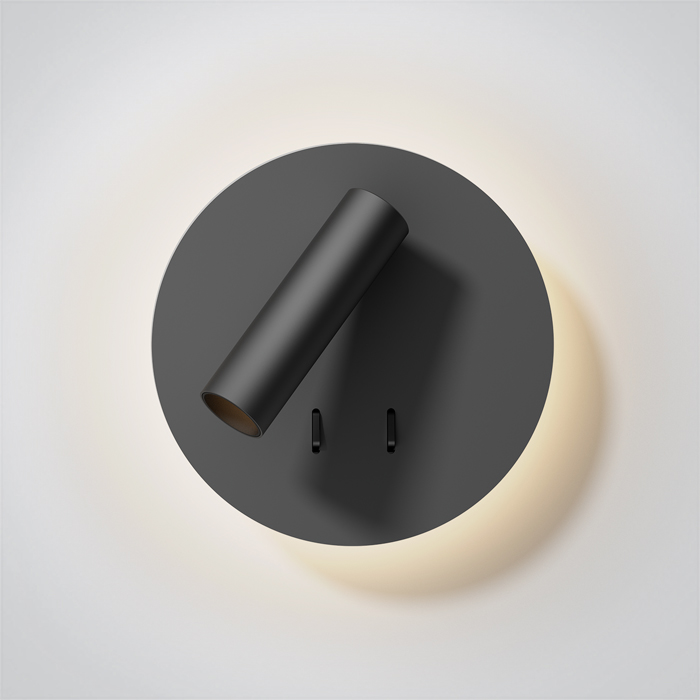

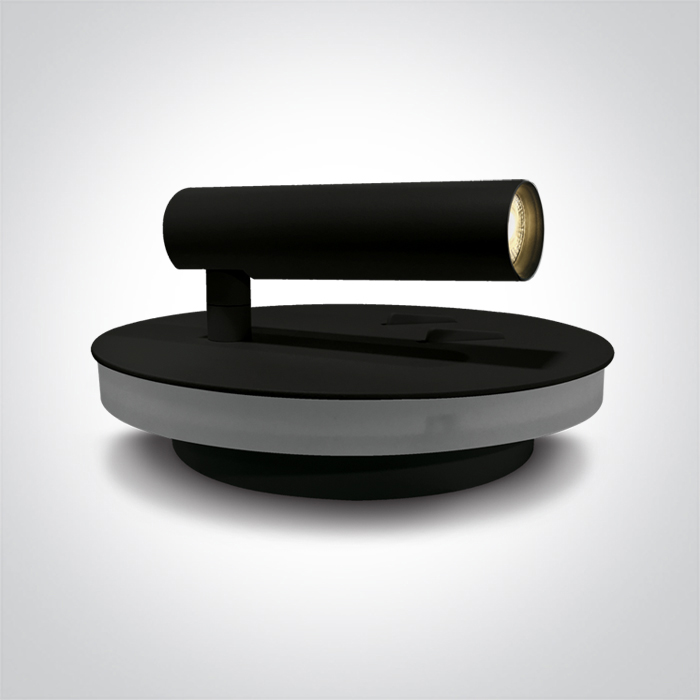

65746B/B/W
3W COB LED bedside adjustable fitting with 6W backlight and switch, ideal for room hotel installation, IP20.
Complete with driver. Complete with black, brass & white reflectors.
Complies with standard EN60598-1 and any other specific standards.
Complete with driver. Complete with black, brass & white reflectors.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
12 Wall & Ceiling LED
Family
Dark Light Cylinders Tubes
Order Code
65746B/B/W
Colour
Black
Material
Aluminium
Shape
Circular
Height
27mm
Diameter
150mm
Surface Wall
Yes
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
3W + 6W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
IP Rating
IP20
Light Source
LED built in
LED Type
COB
Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power Factor
0,5
Constant Current
Yes
150mA
0
700mA
IP Rating
IP20
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
3000K
Lumen Output
150lm+420lm
Light Efficiency
50lm/W
CRI
90
Beam Angle
36°
Illumination Diagram
Packing Info
Box Weight
0.725kg
Pcs/Carton
20
Barcode
5291889070641
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
