New 2025 Edition 3 > Magnetic Lights
42106B/W/V

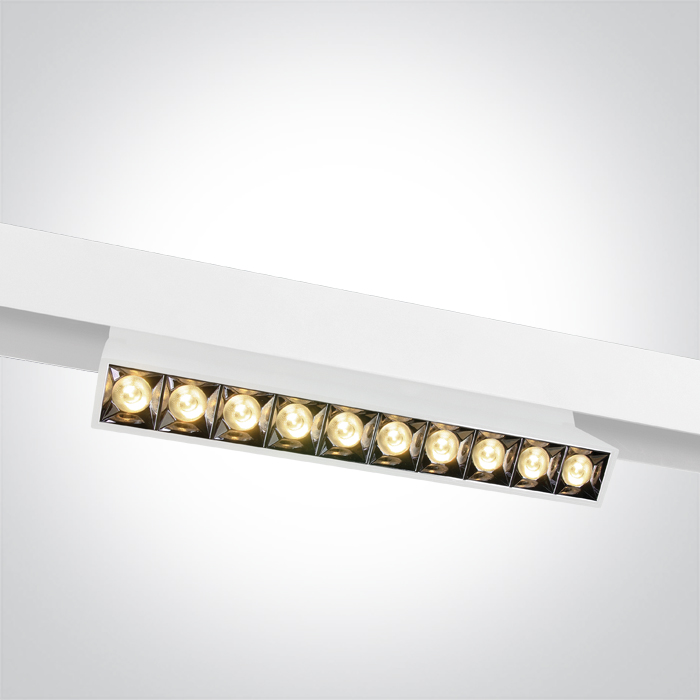

22W CCT Variable White LED Linear magnetic profile light.
Adjustable 1 direction MAXI, Adjustable 2 direction MINI.
Suitable for MINI, MAXI & P&P magnetic profiles.
Complies with standard EN60598-1 and any other specific standards.
Adjustable 1 direction MAXI, Adjustable 2 direction MINI.
Suitable for MINI, MAXI & P&P magnetic profiles.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 3
Family
Magnetic Lights
Order Code
42106B/W/V
Colour
White
Material
Aluminium
Shape
Rectangular
Length
270mm
Width
34mm
Height
95mm
Surface Ceiling
Yes
Track mounted
Yes
Indoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
48V DC
Safety Class
Power (Watts)
22W
IP Rating
IP20
Light Source
LED built in
F Mark
Illumination Data
Colour Temperature
3000K-3500K-4000K
Lumen Output
1760lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
38°
Illumination Diagram
Packing Info
Box Weight
0.860kg
Pcs/Carton
20
Barcode
5291889086406
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
