New 2025 Edition 3 > Tracks & Magnetic
42002RB/W
2 meter MIDI Recessed magnetic profile ON/OFF and DALI 48V.
Max 10m/driver, Max 400W/circuit.

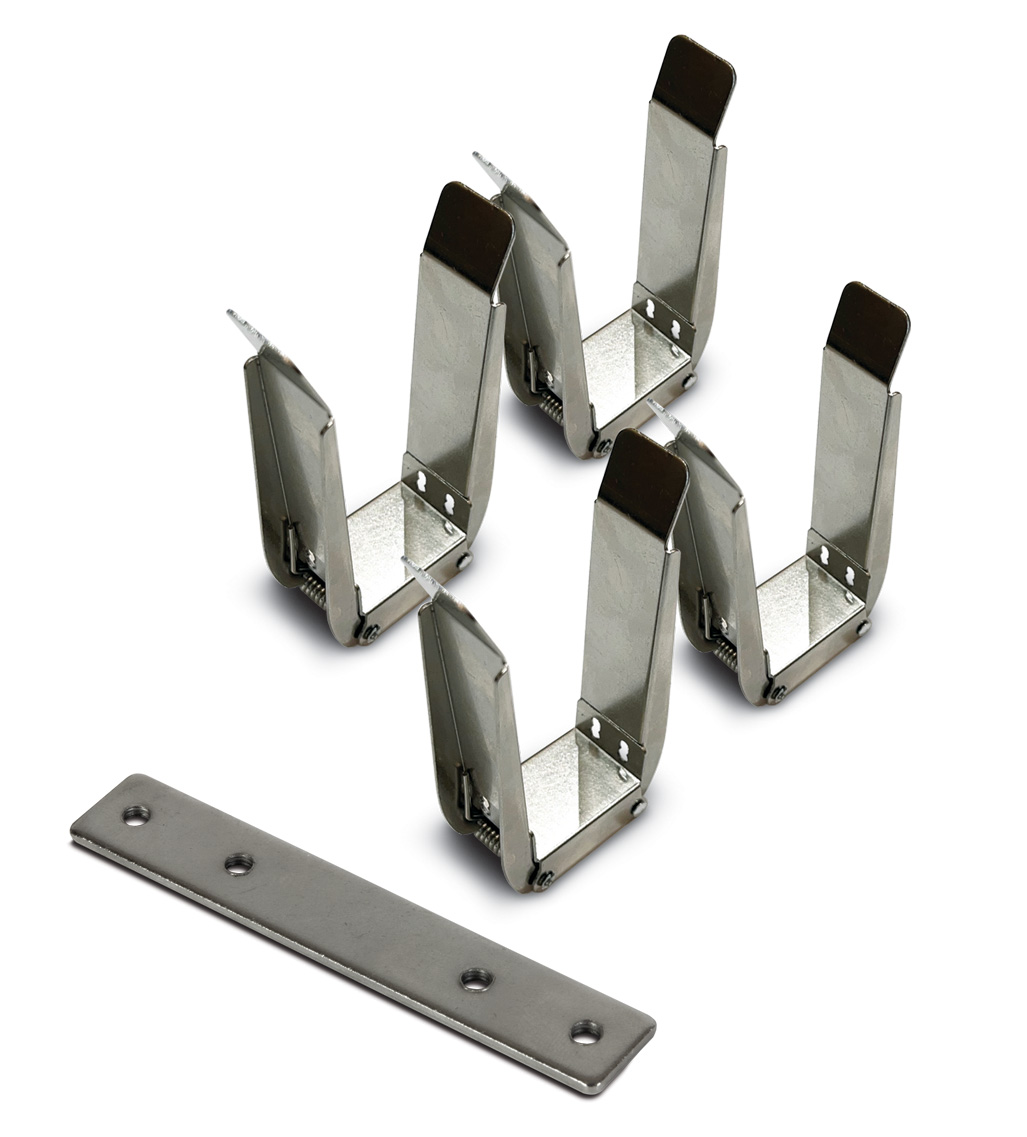

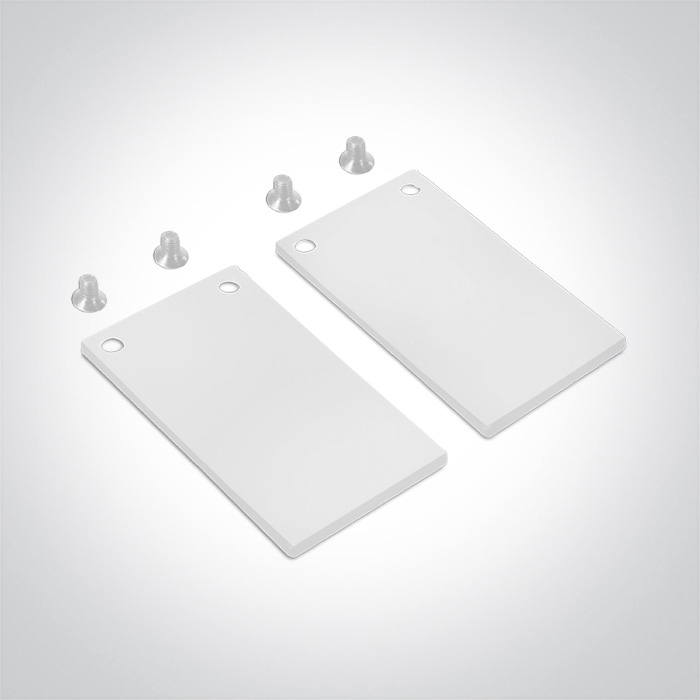

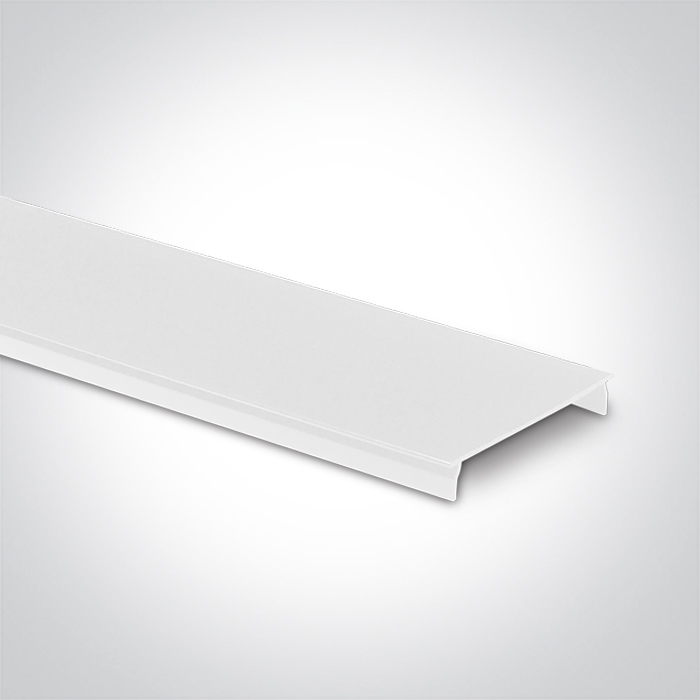

Complete with 2pcs end caps, cover, 1 set mechanical connector and 6 fixing clips.
Max 10m/driver, Max 400W/circuit.
Complete with 2pcs end caps, cover, 1 set mechanical connector and 6 fixing clips.

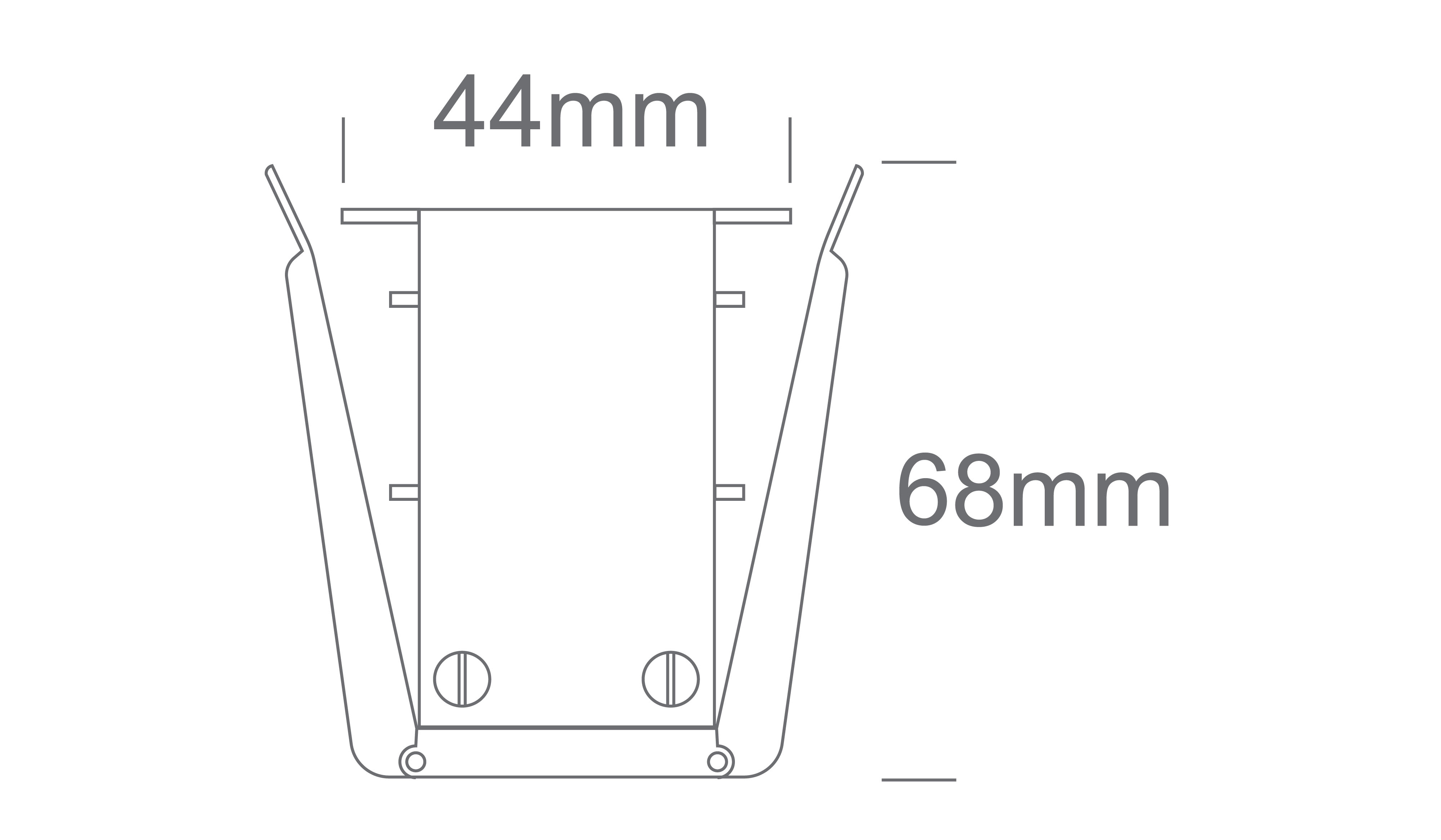

Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 3
Family
Tracks & Magnetic
Order Code
42002RB/W
Colour
White
Material
Aluminium
Shape
Rectangular
Length
2000mm
Width
44mm
Height
68mm
Cutout Hole Width
2000mm
Cutout Hole Height
35mm
Recessed Ceiling
Yes
Recessed wall
Yes
Depth Required
100mm
Indoor
Yes
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
48V DC
Safety Class
Power (Watts)
400W/Circuit
LED Number
0
Illumination Data
Packing Info
Box Weight
3.800kg
Pcs/Carton
1
Barcode
5291889085980
HS Code
9405990090
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
