New 2025 Edition 3 > Industrial & Floodlights
38150M/V
70W LED CCT Variable & Power variable industrial fitting. Stainless steel clips included.
Polycarbonate body and diffuser.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

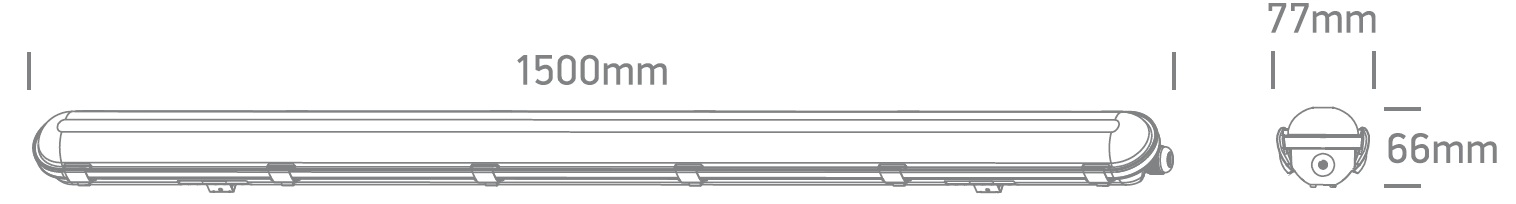

Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 3
Family
Industrial & Floodlights
Order Code
38150M/V
Colour
Grey
Material
PC
Diffuser Material
PC
Shape
Rectangular
Length
1500mm
Width
77mm
Height
66mm
Surface Ceiling
Yes
Surface Wall
Yes
Indoor
Yes
Outdoor
Yes
Adjustable
No
IK Rating
8
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
48W/55W/62W/70W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
IP Rating
IP65
Light Source
LED built in
LED Type
SMD 2835
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
IP Rating
IP20
Dimmable
No
Illumination Data
Colour Temperature
3000K-4000K-6500K
Lumen Output
7000lm @ 70W
Light Efficiency
100lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
1.880kg
Pcs/Carton
9
Barcode
5291889082958
HS Code
9405114090
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
