12 Wall & Ceiling LED > LED Fashion Cylinders

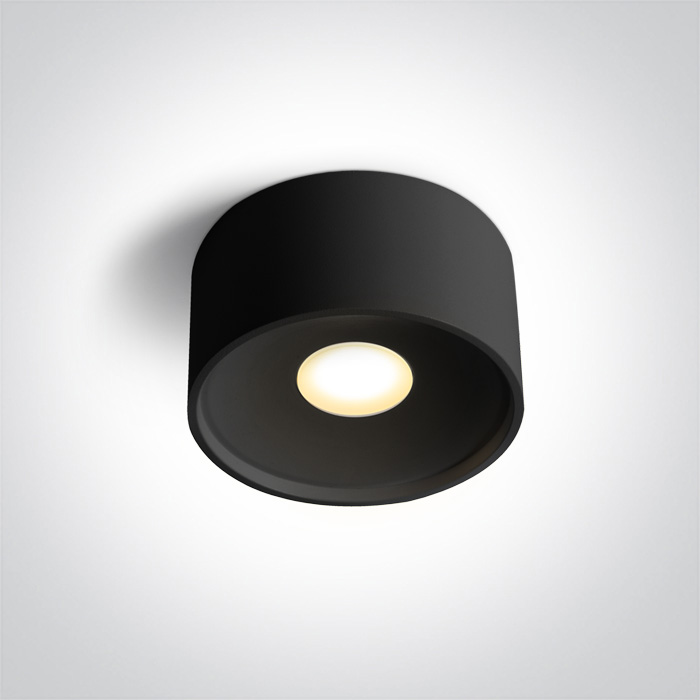

12112F/B/V
12W CCT Variable COB LED surface mounted cylinder.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

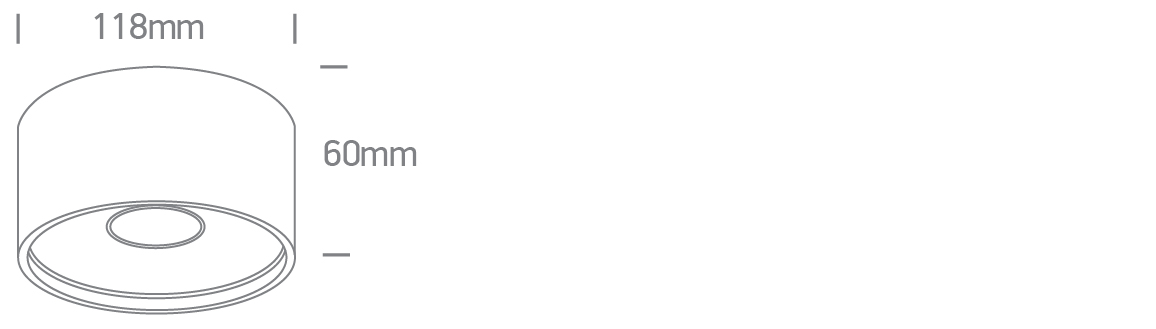

Dimensions
Downloads
Physical Specification
Item Group
12 Wall & Ceiling LED
Family
LED Fashion Cylinders
Order Code
12112F/B/V
Colour
Black
Material
Aluminium
Shape
Circular
Height
60mm
Diameter
118mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
12W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Light Source
LED built in
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Output
300mA
Illumination Data
Colour Temperature
3000K-3500K-4000K
Lumen Output
960lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
120°
Illumination Diagram
Packing Info
Box Weight
0.410kg
Pcs/Carton
50
Barcode
5291889089087
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
26
