04 Recessed Spots Adjustable LED > The 12W COB Range
.jpg)
11112/W/V

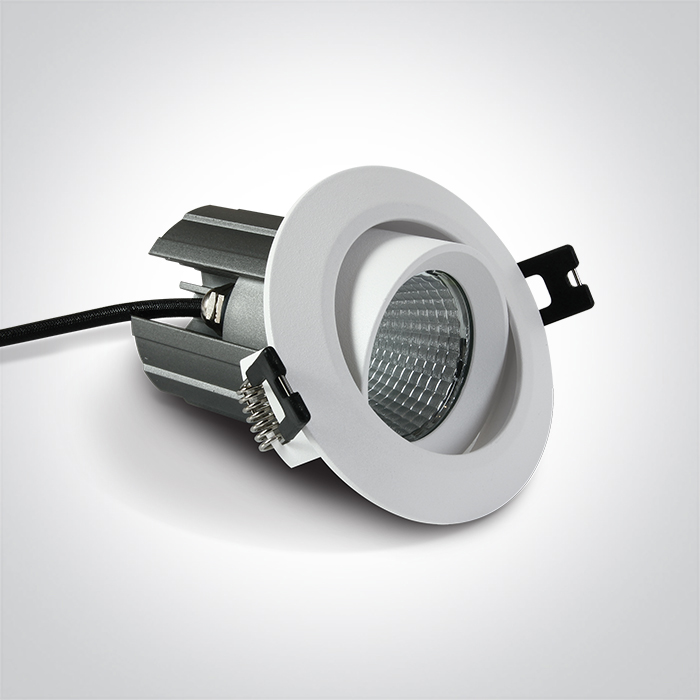

12W CCT Variable COB LED Adjustable recessed spot, IP20.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards
Dimensions
Downloads
Physical Specification
Item Group
04 Recessed Spots Adjustable LED
Family
The 12W COB Range
Order Code
11112/W/V
Colour
White
Material
Aluminium
Shape
Circular
Height
85mm
Diameter
88mm
Cutout Hole Diameter
76mm
Recessed Ceiling
Yes
Depth Required
90mm
Indoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
700mA
Safety Class
Power (Watts)
12W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
Cable Length
40cm
Fast Connector
One Light 700
F Mark
Illumination Data
Colour Temperature
3000K-3500K-4000K
Lumen Output
1200lm
Light Efficiency
100lm/W
CRI
90
Beam Angle
38°
Illumination Diagram
Packing Info
Pcs/Carton
50
Barcode
5291889087465
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
