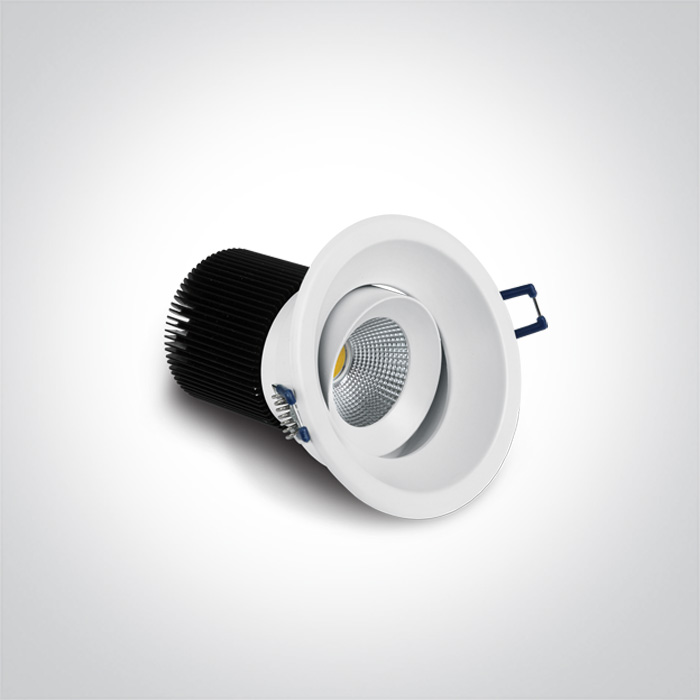

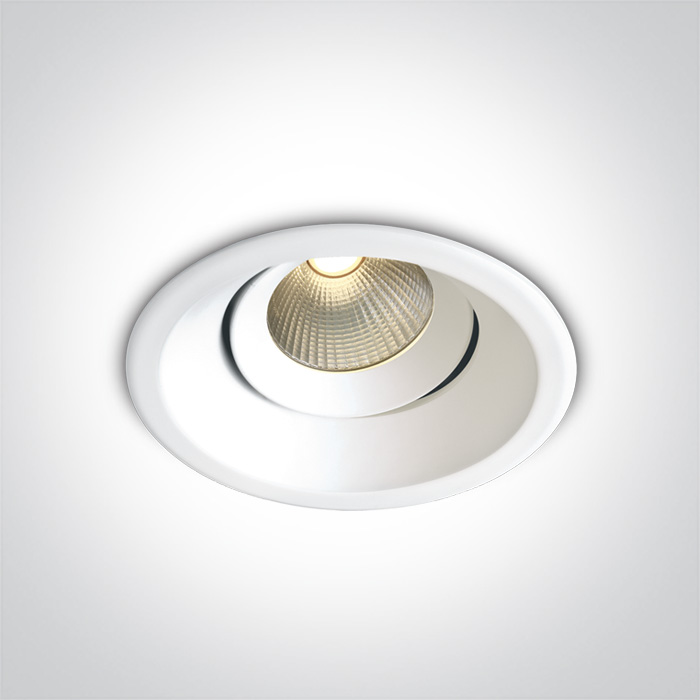

04 Recessed Spots Adjustable LED > The COB Dark Light
11112TA/W/W
12W LED Dark Light Recessed adjustable spot, IP20.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.

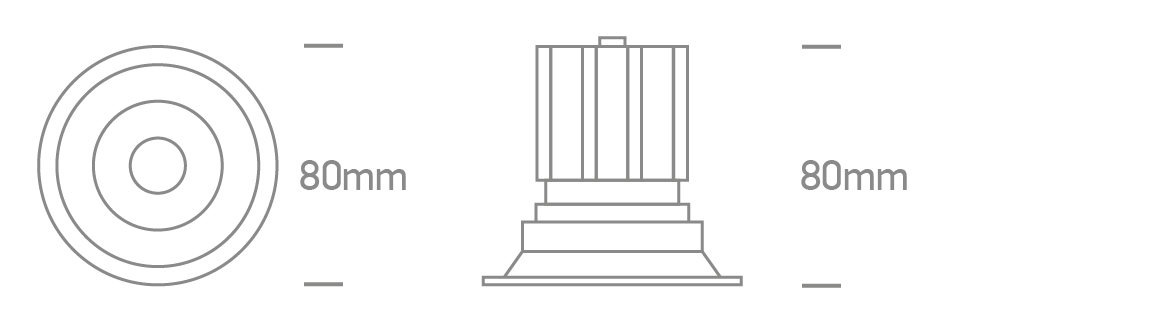

Dimensions
Downloads
Physical Specification
Item Group
04 Recessed Spots Adjustable LED
Family
The COB Dark Light
Order Code
11112TA/W/W
Colour
White
Material
Die Cast
Shape
Circular
Height
80mm
Diameter
104mm
Cutout Hole Diameter
92mm
Recessed Ceiling
Yes
Depth Required
100mm
Indoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
700mA
Safety Class
Power (Watts)
12W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
LED Number
1
Cable Length
40cm
Fast Connector
One Light 700
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
1100lm
Light Efficiency
91,67lm/W
CRI
90
Beam Angle
40°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
11,5cm
Box Width
11,5cm
Box Height
12,5cm
Box Weight
0.388kg
Pcs/Carton
50
Barcode
5291889043997
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
16
