04 Recessed Spots Adjustable LED > The 7W COB Range
11107B/W/C

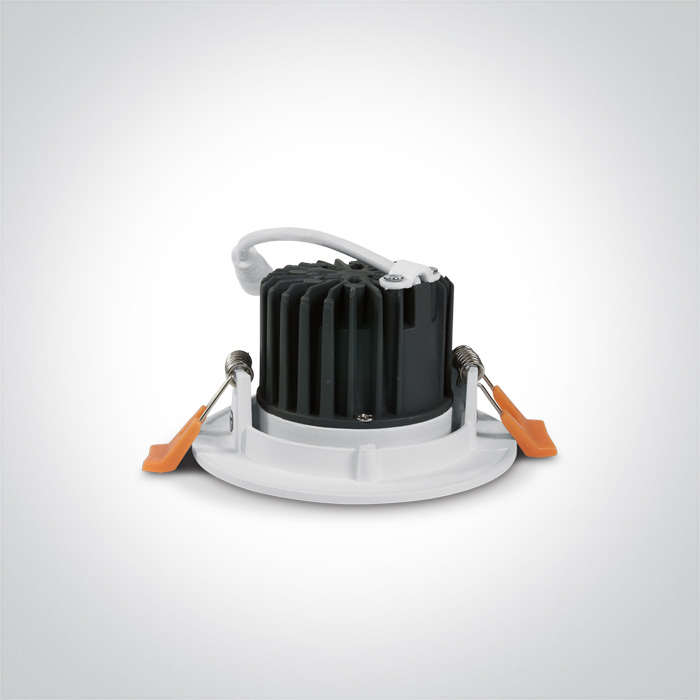

7W recessed adjustable spot LED. Suitable for residential
and commercial applications, IP20.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
04 Recessed Spots Adjustable LED
Family
The 7W COB Range
Order Code
11107B/W/C
Colour
White
Material
Die Cast
Shape
Circular
Height
55mm
Diameter
90mm
Cutout Hole Diameter
75mm
Recessed Ceiling
Yes
Depth Required
75mm
Indoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
7W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
300mA
Voltage
21V
Safety Class
Power (Watts)
6,3W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Epistar
LED Number
1
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
4,2-7,2W
Power Factor
0,5
Constant Current
Yes
300mA
14-24V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
4000K
Lumen Output
560lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
60°
Illumination Diagram
Packing Info
Box Length
12,5cm
Box Width
6cm
Box Height
11,5cm
Box Weight
0.228kg
Pcs/Carton
50
Barcode
5291889070931
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Average Lifetime
30000hrs
Wee Directive
Yes
Year in which the CE mark was affixed
17
