02 Recessed Spots Fixed LED > The COB Dark Light Range
.jpg)

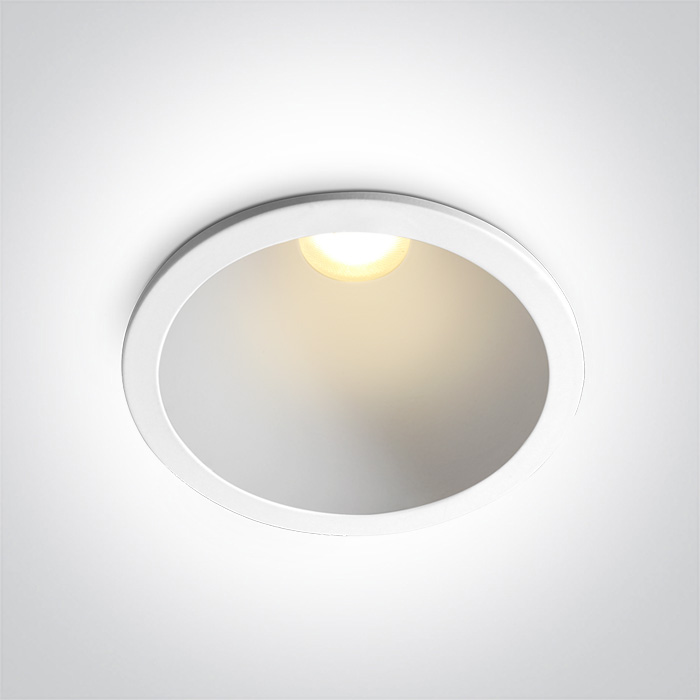

10115D/W/V
15W CCT Variable COB LED recessed spot, IP20.
Complete with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.

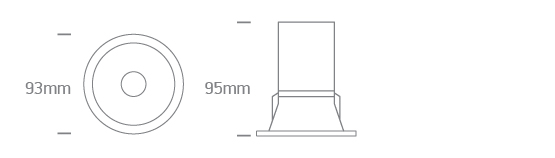

Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The COB Dark Light Range
Order Code
10115D/W/V
Colour
White
Material
Aluminium
Shape
Circular
Height
95mm
Diameter
93mm
Cutout Hole Diameter
83mm
Recessed Ceiling
Yes
Depth Required
110mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
15W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
350mA
Light Source
LED built in
LED Type
COB
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Output
350mA
Dimmable
No
Illumination Data
Colour Temperature
3000K-4000K-5000K
Lumen Output
1350lm
Light Efficiency
90lm/W
CRI
90
Beam Angle
50°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.380kg
Pcs/Carton
30
Barcode
5291889085409
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
