02 Recessed Spots Fixed LED > The COB Dark Light Range
.jpg)

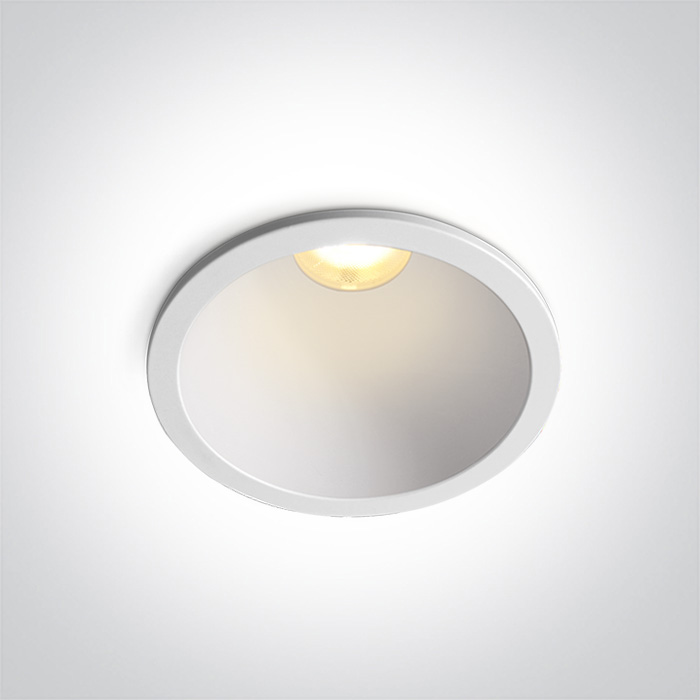

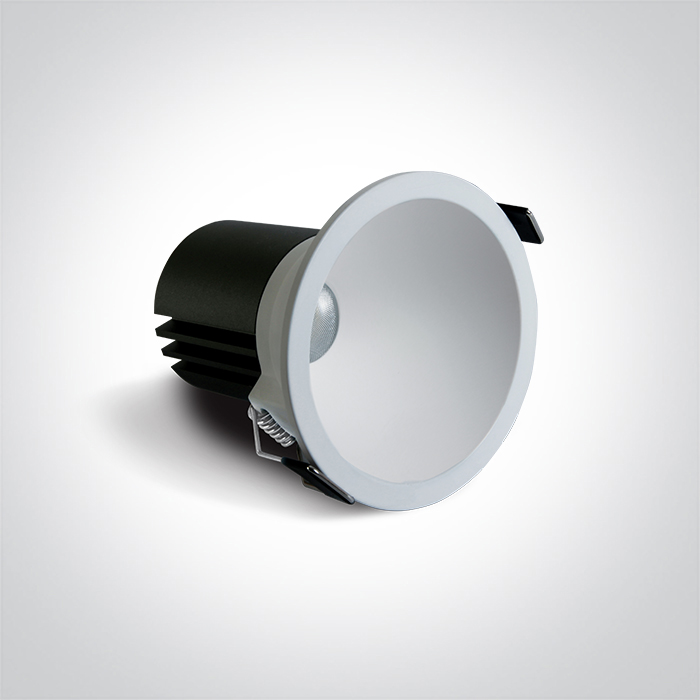

10112D/W/V
12W CCT Variable COB LED recessed spot, IP20.
Complete with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.

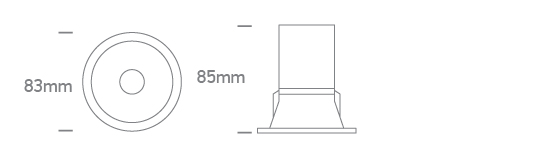

Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The COB Dark Light Range
Order Code
10112D/W/V
Colour
White
Material
Aluminium
Shape
Circular
Height
85mm
Diameter
83mm
Cutout Hole Diameter
72mm
Recessed Ceiling
Yes
Depth Required
100mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
12W
IP Rating
IP20
Light Source
LED built in
F Mark
Fitting
Input Type
Constant Current
Input Current
300mA
Light Source
LED built in
LED Type
COB
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Output
300mA
Dimmable
No
Illumination Data
Colour Temperature
3000K-4000K-5000K
Lumen Output
1080lm
Light Efficiency
90lm/W
CRI
90
Beam Angle
50°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.268kg
Pcs/Carton
50
Barcode
5291889085393
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
