ONE Light

    • 02 Recessed Spots Fixed LED > The IP65 CCT V

    10107PV/W/V
    Gallery
    10107PV/W/V
    10107PV/W/V

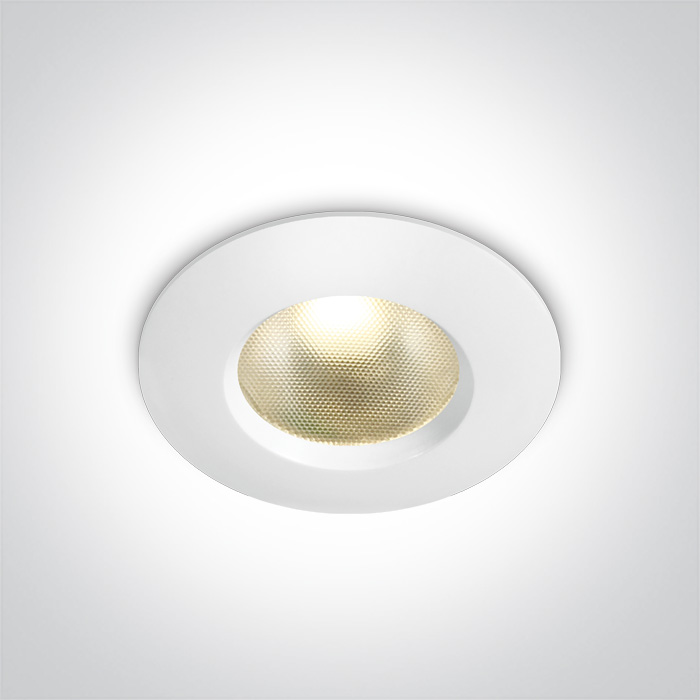

    7W Dimmable CCT adjustable recessed spot, IP65.

    AC LED

    Complies with standard EN60598-1 and any other specific standards.
    Indoor-Outdoor
    Ceiling
    IP
    CRI
    Dimmable
    Beam Angle
    CE

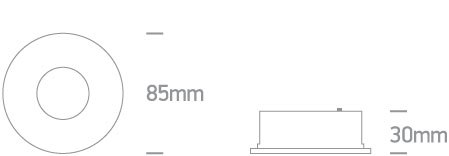

    Dimensions
    Downloads
    Product PDF Installation Manual IES Photo Download

    Physical Specification

    +
    Item Group
    02 Recessed Spots Fixed LED
    Family
    The IP65 CCT V
    Order Code
    10107PV/W/V
    Colour
    White
    Material
    Plastic
    Shape
    Circular
    Height
    30mm
    Diameter
    85mm
    Cutout Hole Diameter
    72mm
    Recessed Ceiling
    Yes
    Depth Required
    40mm
    Indoor
    Yes
    Outdoor
    Yes

    Electrical Characteristics

    +
    Gear
    No
    Fitting + Driver
    Input Voltage
    220-240V
    50 Hz
    Yes
    60 Hz
    Yes
    Safety Class
    Power (Watts)
    7W
    IP Rating
    IP65
    Light Source
    LED built in
    Dimmable
    Yes
    Dimmer type
    Triac
    F Mark

    Illumination Data

    +
    Colour Temperature
    2700K-3000K-4000K
    Lumen Output
    600lm
    Light Efficiency
    85,71lm/W
    CRI
    85
    Beam Angle
    38°
    Illumination Diagram

    Packing Info

    +
    Box Weight
    0.145kg
    Pcs/Carton
    48
    Barcode
    5291889075172
    HS Code
    9405114090

    Energy Label

    +

    Certification & Warranty

    +
    Warranty
    3 years
    Wee Directive
    Yes
    Year in which the CE mark was affixed
    22
