02 Recessed Spots Fixed LED > The COB Dark Light Range CCT V
10107DX/W/V

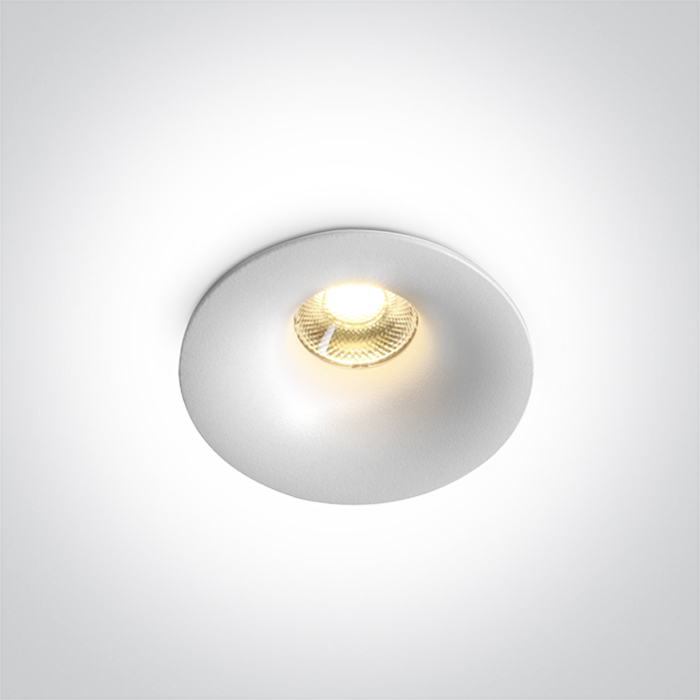

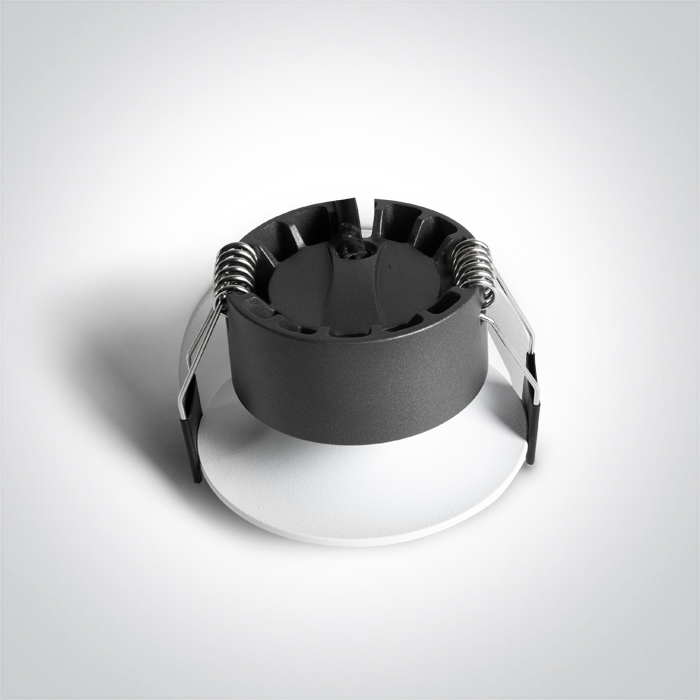

7W CCT Variable LED recessed downlight, IP20.
Complete with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.

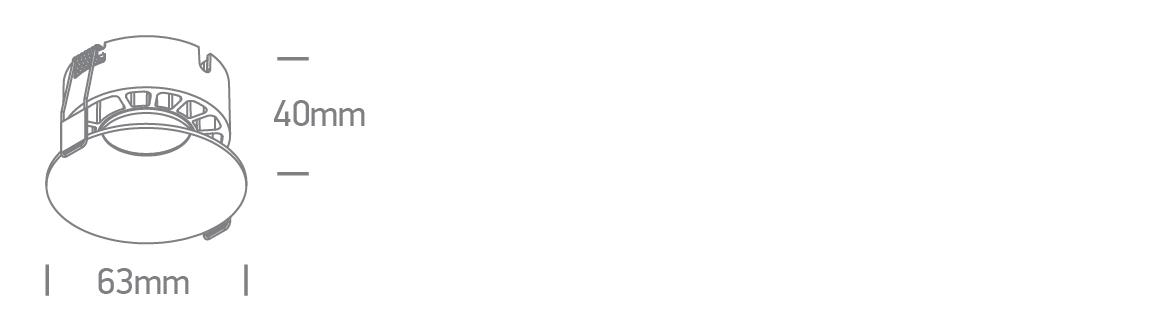

Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The COB Dark Light Range CCT V
Order Code
10107DX/W/V
Colour
White
Material
Aluminium
Shape
Circular
Height
40mm
Diameter
63mm
Cutout Hole Diameter
54mm
Recessed Ceiling
Yes
Depth Required
60mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
7W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
160mA
Light Source
LED built in
LED Type
COB
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Output
160mA
Illumination Data
Colour Temperature
3000K-3500K-4000K
Lumen Output
560lm
Light Efficiency
80m/W
CRI
90
Beam Angle
36°
Illumination Diagram
Dark Light
Yes
Packing Info
Pcs/Carton
50
Barcode
5291889092933
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
