02 Recessed Spots Fixed LED > The IP65 Range

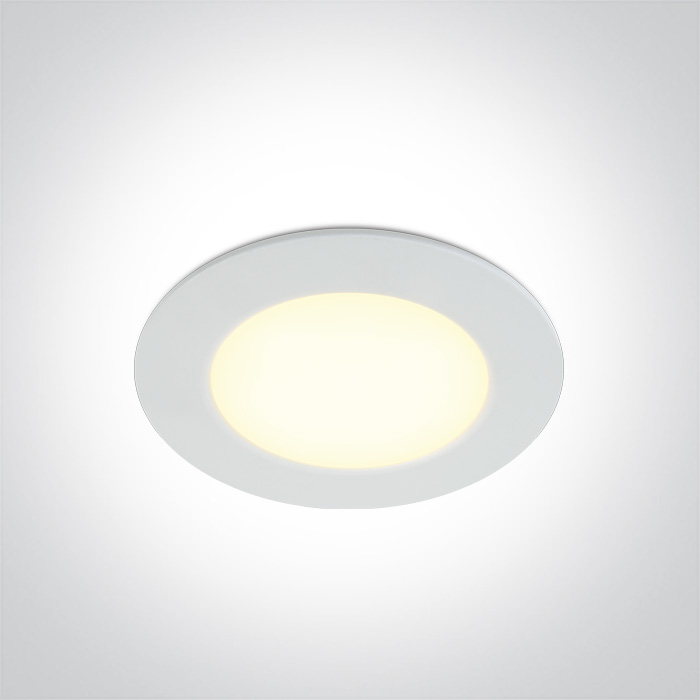

10106P/W/W
IP65 6W COB LED recessed spot suitable for installation in
bathroom.
Complete with driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with driver.
Complies with standard EN60598-1 and any other specific standards.

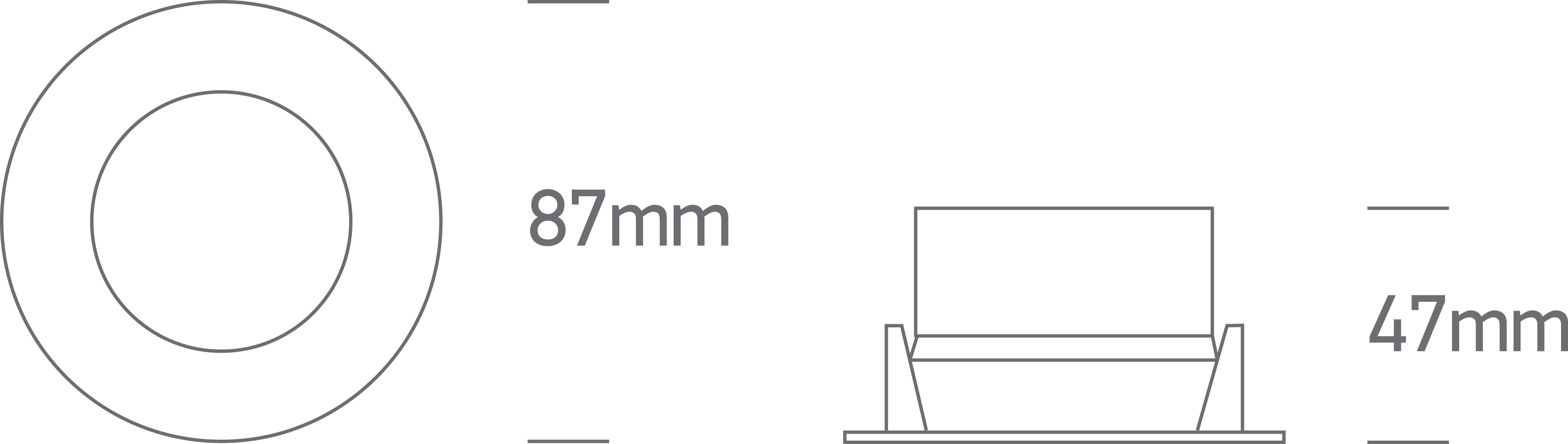

Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The IP65 Range
Order Code
10106P/W/W
Material
Plastic
Diffuser Material
PC
Shape
Circular
Height
47mm
Diameter
87mm
Cutout Hole Diameter
67mm
Recessed Ceiling
Yes
Depth Required
70mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
6W
IP Rating
IP65
Light Source
LED built in
F Mark
Fitting
Input Type
Constant Current
Input Current
75mA
Voltage
72V
Power (Watts)
5,4W
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Smalite
LED Number
8
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
6W
Power Factor
0,5
Voltage Range
72V
Output
72V
Dimmable
Yes
Dimmer type
Triac
Illumination Data
Colour Temperature
3000K
Lumen Output
570lm
Light Efficiency
95lm/W
CRI
80
Beam Angle
100°
Illumination Diagram
Packing Info
Box Length
9cm
Box Width
9cm
Box Height
7,5cm
Box Weight
0.108kg
Pcs/Carton
48
Barcode
5291889044949
HS Code
9405114090
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
16
