25 Lamps > High Power LED
9G80N/C/LE

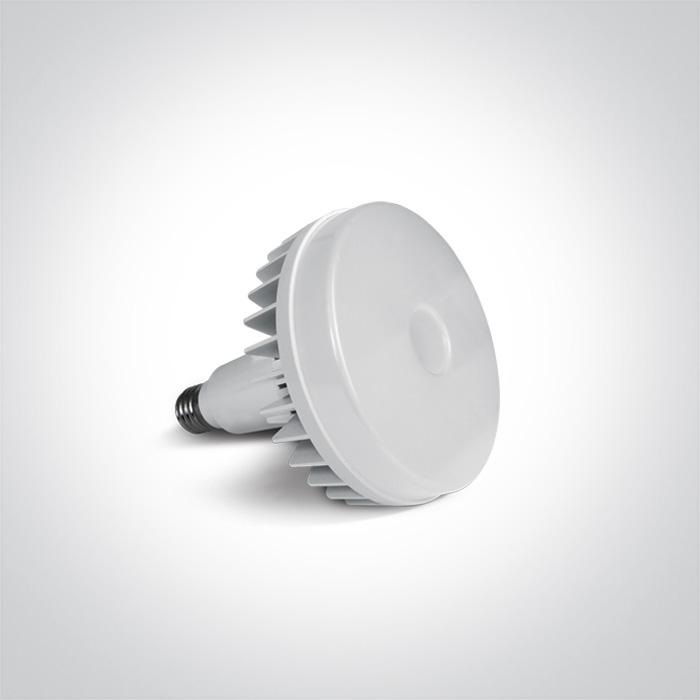

80W E40 LED lamp, direct replacement of conventional
lamp, for industrial illumination.
Complies with standard EN62560 and any other specific standards.
Complies with standard EN62560 and any other specific standards.

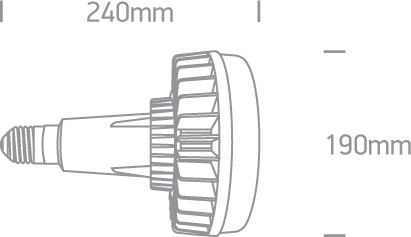

Dimensions
Downloads
Physical Specification
Item Group
25 Lamps
Family
High Power LED
Order Code
9G80N/C/LE
Shape
Circular
Height
240mm
Diameter
190mm
Electrical Characteristics
Gear
No
Lamp
Input Type
Mains Voltage
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
80W
Lamp Type
LED
Lamp Holder
E40
LED Type
SMD 2835
LED Brand
Sanan
LED Number
144
Dimmable
No
Illumination Data
Colour Temperature
4000K
Lumen Output
7200lm
Light Efficiency
90lm/W
CRI
80
Beam Angle
240°
Illumination Diagram
Packing Info
Box Weight
1.200kg
Pcs/Carton
4
Barcode
5291889047308
HS Code
8539520000
Energy Label
Energy Class
Energy Consumption
80kWh/1000h
Certification & Warranty
Warranty
2 years
Average Lifetime
15000hrs
Switching Cycles
7500
Wee Directive
Yes
Year in which the CE mark was affixed
17
