24 Control & Dimming > 12-36V RGB+W Repeater
89302

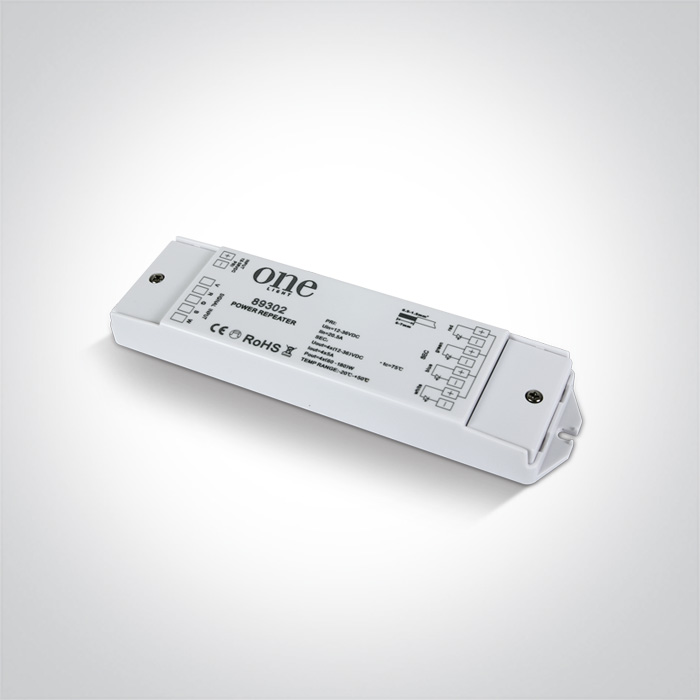

12-36V 4 Channel Signal Repeater.
Repeats the PWM signal when dimming constant voltage fittings
Requires 12-24V constant voltage driver.
Complies with standard EN61347-1 and any other specific standards.
Repeats the PWM signal when dimming constant voltage fittings
Requires 12-24V constant voltage driver.
Complies with standard EN61347-1 and any other specific standards.

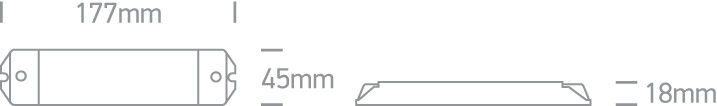

Dimensions
Downloads
Physical Specification
Item Group
24 Control & Dimming
Family
12-36V RGB+W Repeater
Order Code
89302
Material
Plastic
Shape
Rectangular
Length
177mm
Width
45mm
Height
18mm
Indoor
Yes
Electrical Characteristics
Gear
Gear Type
Led Controller
Input Voltage
12-36V DC
Power (Watts)
60W@12V 120W@24V x4
Constant Voltage
Yes
12 V
Yes
24 V
Yes
IP Rating
IP20
Safety Class
Dimmable
Yes
Housing Material
Plastic
Output Terminal
Connector
Packing Info
Box Weight
0.120kg
Pcs/Carton
100
Barcode
5291889030379
HS Code
8504408390
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
13
