    89300VP
    89300VP

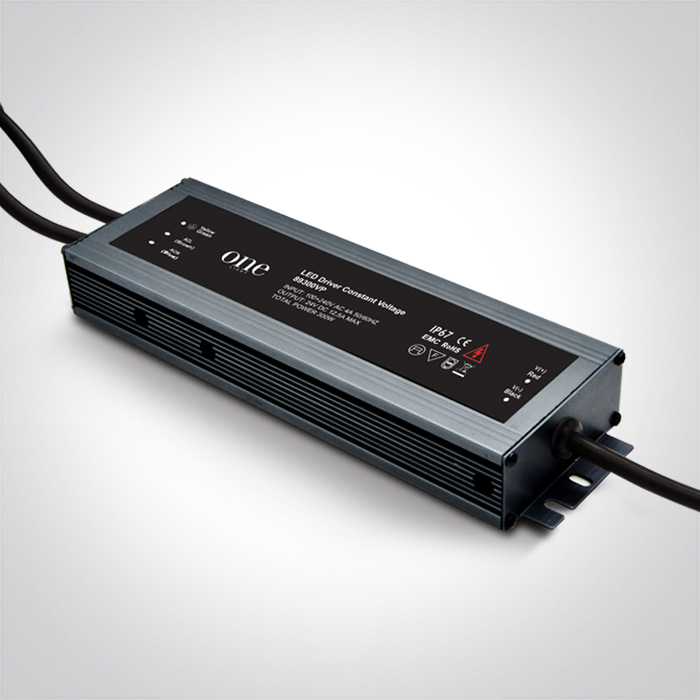

    300W 24V DC constant voltage driver, Waterproof IP67.

    Complies with standard EN61347-1 and any other specific standards.
    Indoor-Outdoor
    IP
    CE
    Dimensions
    Downloads
    Product PDF Photo Download

    Physical Specification

    +
    Item Group
    22 Drivers
    Family
    The 24V DC Waterproof IP67 Range Constant voltage
    Order Code
    89300VP
    Material
    Metal
    Shape
    Rectangular
    Length
    240mm
    Width
    72mm
    Height
    33mm
    Indoor
    Yes
    Outdoor
    Yes

    Electrical Characteristics

    +
    Gear
    Gear Type
    Led Driver
    Input Voltage
    100-240V
    50 Hz
    Yes
    60 Hz
    Yes
    Power (Watts)
    300W
    Power Factor
    0,9
    Constant Voltage
    Yes
    24 V
    Yes
    IP Rating
    IP67
    Safety Class
    Dimmable
    No
    Ambient Temp
    60ºC
    Operating Temp
    70ºC
    Housing Material
    Metal
    Output Terminal
    Cable
    Cable Length
    100cm

    Packing Info

    +
    Box Weight
    1.245kg
    Pcs/Carton
    20
    Barcode
    5291889076438
    HS Code
    8504408390

    Certification & Warranty

    +
    Warranty
    3 years
    Wee Directive
    Yes
    Year in which the CE mark was affixed
    13
