22 Drivers > The 48V DC Range Constant voltage
89240XL

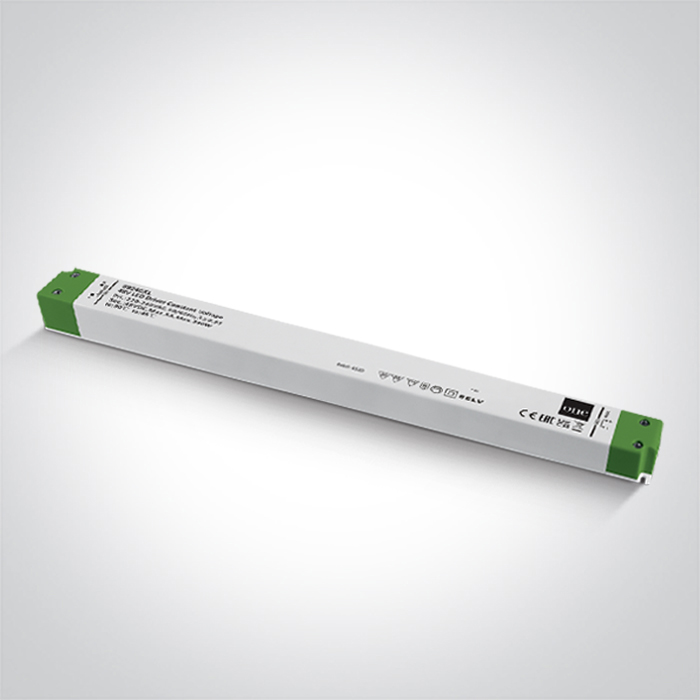

240W 48V DC constant voltage driver, IP20.
Complies with standard EN61347-1 and any other specific standards.
Complies with standard EN61347-1 and any other specific standards.

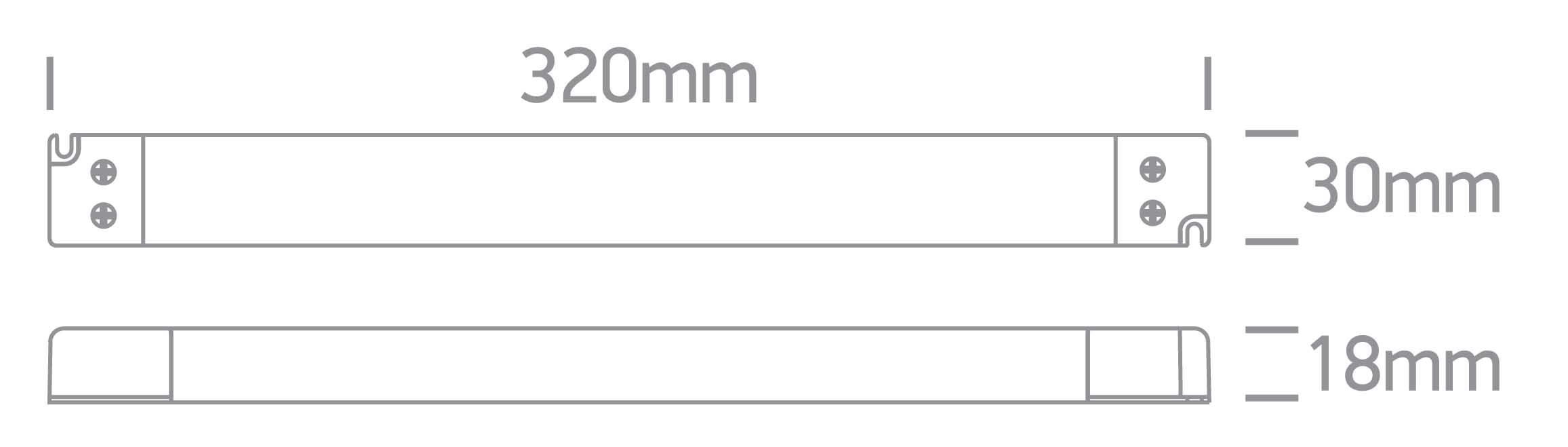

Dimensions
Downloads
Physical Specification
Item Group
22 Drivers
Family
The 48V DC Range Constant voltage
Order Code
89240XL
Material
Plastic
Shape
Rectangular
Length
320mm
Width
30mm
Height
18mm
Indoor
Yes
Electrical Characteristics
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
240W
Power Factor
0,95
Constant Voltage
Yes
48 V
Yes
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
45ºC
Operating Temp
90ºC
Housing Material
Plastic
Output Terminal
Connector
Packing Info
Box Weight
0.320kg
Pcs/Carton
50
Barcode
5291889080695
HS Code
8504408390
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
24
