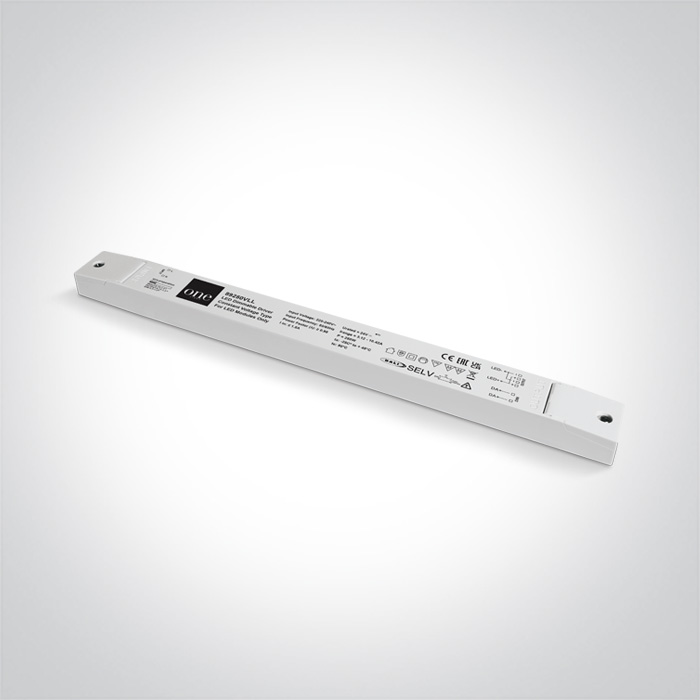

22 Drivers > The 24V DC Slim DALI Dimmable Constant voltage
89240VLL
75-250W 24V DC DALI and Push to dim dimmable constant voltage driver, suitable to install inside profile, IP20.
Complies with standard EN61347-1 and any other specific standards.
Complies with standard EN61347-1 and any other specific standards.

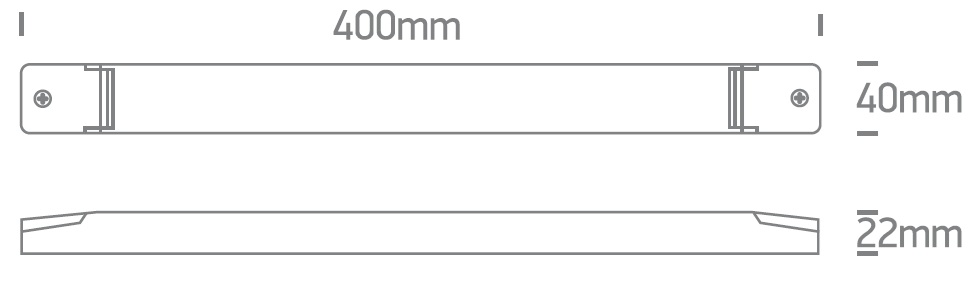

Dimensions
Downloads
Physical Specification
Item Group
22 Drivers
Family
The 24V DC Slim DALI Dimmable Constant voltage
Order Code
89240VLL
Material
Plastic
Shape
Rectangular
Length
400mm
Width
40mm
Height
22mm
Indoor
Yes
Electrical Characteristics
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
75-250W
Constant Voltage
Yes
24 V
Yes
IP Rating
IP20
Safety Class
Dimmable
Yes
Dimmer type
Dali, Push to Dim
Housing Material
Plastic
Output Terminal
Connector
Packing Info
Box Weight
0.530kg
Pcs/Carton
20
Barcode
5291889075301
HS Code
8504408390
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
