ONE Light

    • New 2025 Edition 2 > Drivers

    89240VL
    89240VL
    240W 24V DC constant voltage driver, IP20.

    Complies with standard EN61347-1 and any other specific standards.
    Indoor
    IP
    CE

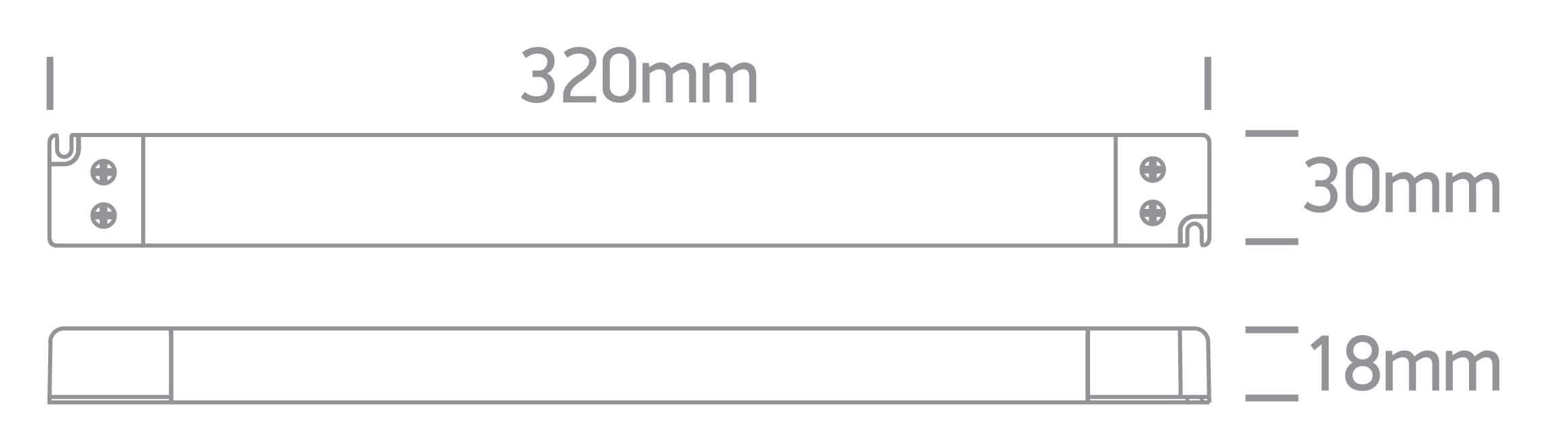

    Dimensions
    Downloads
    Product PDF Photo Download

    Physical Specification

    +
    Item Group
    New 2025 Edition 2
    Family
    Drivers
    Order Code
    89240VL
    Material
    Plastic
    Shape
    Rectangular
    Length
    320mm
    Width
    30mm
    Height
    18mm
    Indoor
    Yes

    Electrical Characteristics

    +
    Gear
    Gear Type
    Led Driver
    Input Voltage
    220-240V
    50 Hz
    Yes
    60 Hz
    Yes
    Power (Watts)
    240W
    Power Factor
    0,95
    Constant Voltage
    Yes
    24 V
    Yes
    IP Rating
    IP20
    Safety Class
    Dimmable
    No
    Ambient Temp
    45ºC
    Operating Temp
    90ºC
    Housing Material
    Plastic
    Output Terminal
    Connector

    Packing Info

    +
    Box Weight
    0.314kg
    Pcs/Carton
    50
    Barcode
    5291889080688
    HS Code
    8504408390

    Certification & Warranty

    +
    Warranty
    5 years
    Wee Directive
    Yes
    Year in which the CE mark was affixed
    24
