23 Drivers > The 48V DC Open Range Constant voltage
89200XN

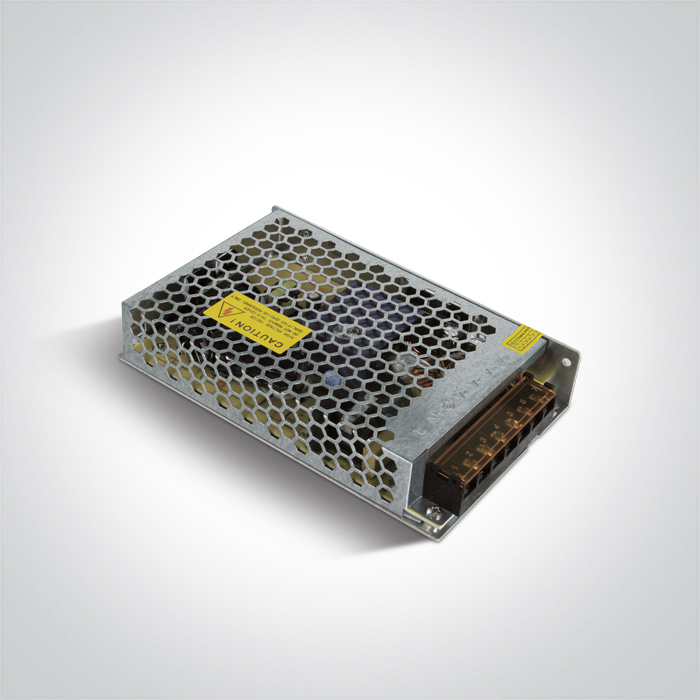

200W 48V DC constant voltage driver, IP20.
Complies with standard EN61347-1 and any other specific standards.
Complies with standard EN61347-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
23 Drivers
Family
The 48V DC Open Range Constant voltage
Order Code
89200XN
Material
Plastic
Shape
Rectangular
Length
164mm
Width
97mm
Height
30mm
Indoor
Yes
Electrical Characteristics
Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
200W
Power Factor
0,9
Constant Voltage
Yes
IP Rating
IP20
Safety Class
Housing Material
Metal
Output Terminal
Connector
Packing Info
Box Weight
0.425kg
Pcs/Carton
40
Barcode
5291889072294
HS Code
8504408390
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
