ONE Light

    • New 2025 Edition 2 > Drivers

    89200VT
    89200VT

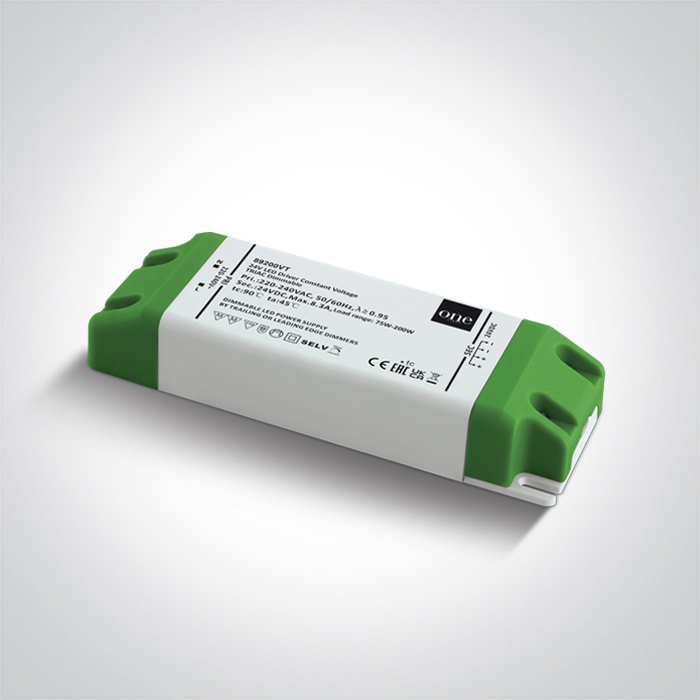

    75-200W 24V DC TRIAC dimmable constant voltage driver, IP20.

    Complies with standard EN61347-1 and any other specific standards.
    Indoor
    IP
    Dimmable
    CE

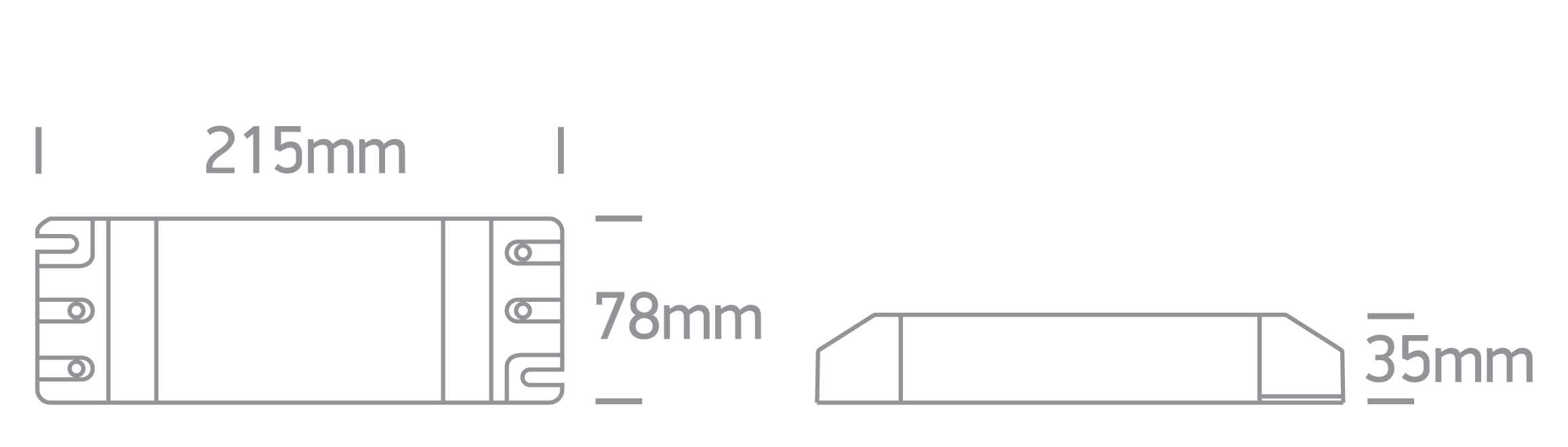

    Dimensions
    Downloads
    Product PDF Photo Download

    Physical Specification

    +
    Item Group
    New 2025 Edition 2
    Family
    Drivers
    Order Code
    89200VT
    Material
    Plastic
    Shape
    Rectangular
    Length
    215mm
    Width
    78mm
    Height
    35mm
    Indoor
    Yes

    Electrical Characteristics

    +
    Gear
    Gear Type
    Led Driver
    Input Voltage
    220-240V
    50 Hz
    Yes
    60 Hz
    Yes
    Power (Watts)
    75-200W
    Power Factor
    ≥0,95
    Constant Voltage
    Yes
    24 V
    Yes
    IP Rating
    IP20
    Safety Class
    Dimmable
    Yes
    Dimmer type
    Triac
    Housing Material
    Plastic

    Packing Info

    +
    Box Weight
    0.833kg
    Pcs/Carton
    15
    Barcode
    5291889080831
    HS Code
    8504408390

    Certification & Warranty

    +
    Warranty
    5 years
    Wee Directive
    Yes
    Year in which the CE mark was affixed
    24
