22 Drivers > The 24V DC Slim Range TRIAC Dimmable
89150VLT

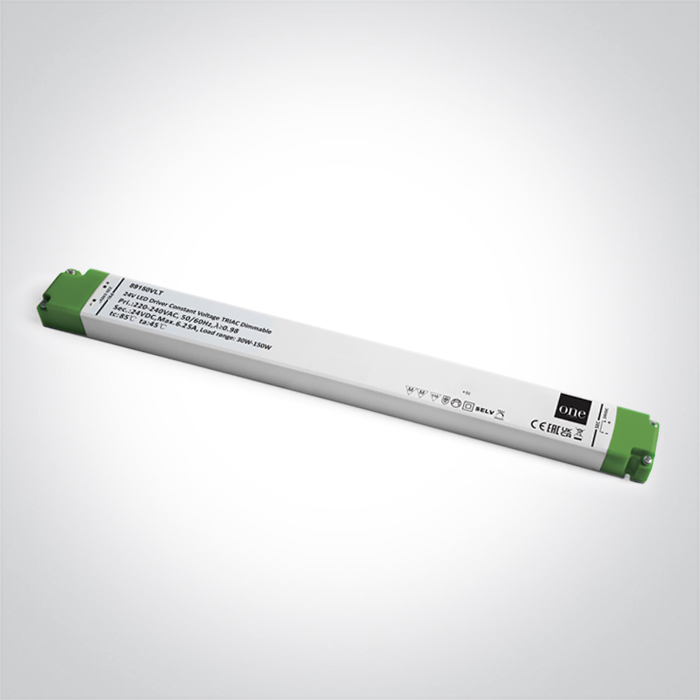

30-150W 24V DC TRIAC dimmable constant voltage driver, IP20.
Complies with standard EN61347-1 and any other specific standards.
Complies with standard EN61347-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
22 Drivers
Family
The 24V DC Slim Range TRIAC Dimmable
Order Code
89150VLT
Material
Plastic
Shape
Rectangular
Length
357mm
Width
32mm
Height
23mm
Indoor
Yes
Electrical Characteristics
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
30-150W
Power Factor
0,98
Constant Voltage
Yes
24 V
Yes
IP Rating
IP20
Safety Class
Dimmable
Yes
Dimmer type
Triac
Ambient Temp
45ºC
Operating Temp
90ºC
Housing Material
Plastic
Output Terminal
Connector
Packing Info
Box Weight
0.440kg
Pcs/Carton
20
Barcode
5291889080855
HS Code
8504408390
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
24
