22 Drivers > The 24V DC Range High Power Constant voltage
89150V
150W 24V DC constant voltage driver, IP20.
Complies with standard EN61347-1 and any other specific standards.
Complies with standard EN61347-1 and any other specific standards.

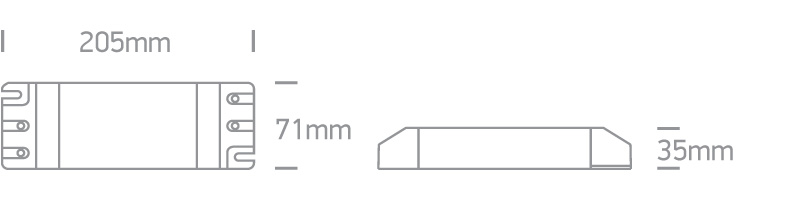

Dimensions
Downloads
Physical Specification
Item Group
22 Drivers
Family
The 24V DC Range High Power Constant voltage
Order Code
89150V
Material
Plastic
Shape
Rectangular
Length
205mm
Width
71mm
Height
35mm
Indoor
Yes
Electrical Characteristics
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
150W
Power Factor
0,9
Constant Voltage
Yes
24 V
Yes
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
45ºC
Operating Temp
90ºC
Housing Material
Plastic
Output Terminal
Connector
Packing Info
Box Length
19cm
Box Width
7,2cm
Box Height
3,7cm
Box Weight
0.496kg
Pcs/Carton
25
Barcode
5291889053521
HS Code
8504408390
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
