22 Drivers > The 24V DC Waterproof IP67 Range Constant voltage
89100VP

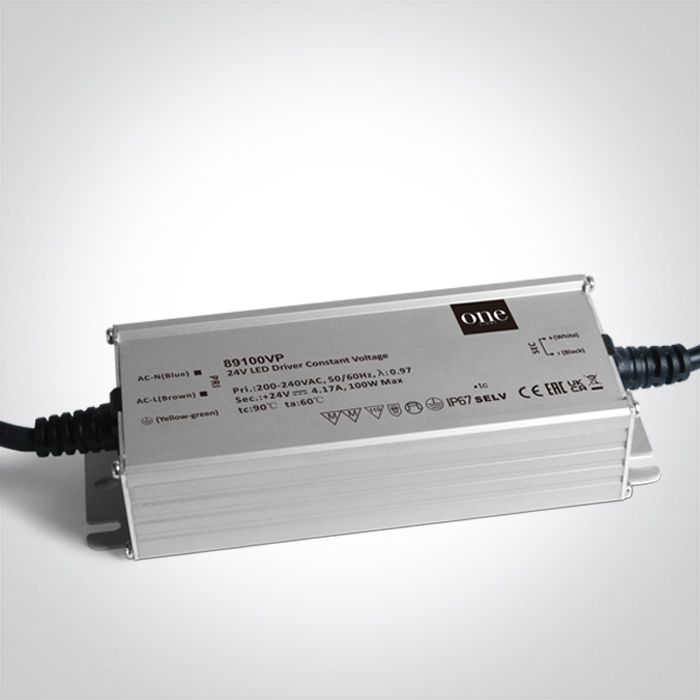

100W 24V DC constant voltage driver, Waterproof IP67.
Complies with standard EN61347-1 and any other specific standards.
Complies with standard EN61347-1 and any other specific standards.

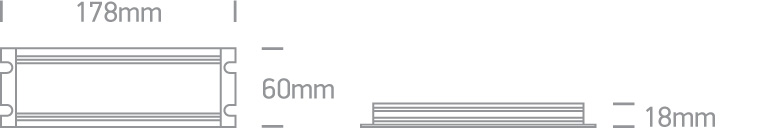

Dimensions
Downloads
Physical Specification
Item Group
22 Drivers
Family
The 24V DC Waterproof IP67 Range Constant voltage
Order Code
89100VP
Material
Metal
Shape
Rectangular
Length
173mm
Width
63mm
Height
38mm
Indoor
Yes
Outdoor
Yes
Electrical Characteristics
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
100W
Power Factor
0,9
Constant Voltage
Yes
24 V
Yes
IP Rating
IP67
Safety Class
Dimmable
No
Ambient Temp
60ºC
Operating Temp
70ºC
Housing Material
Metal
Output Terminal
Cable
Cable Length
100cm
Packing Info
Box Length
20cm
Box Width
5cm
Box Height
6cm
Box Weight
0.850kg
Pcs/Carton
15
Barcode
5291889029342
HS Code
8504408390
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
13
