    • 23 Drivers > The 24V DC Open Range Dimmable Constant voltage

    89100VND
    89100VND

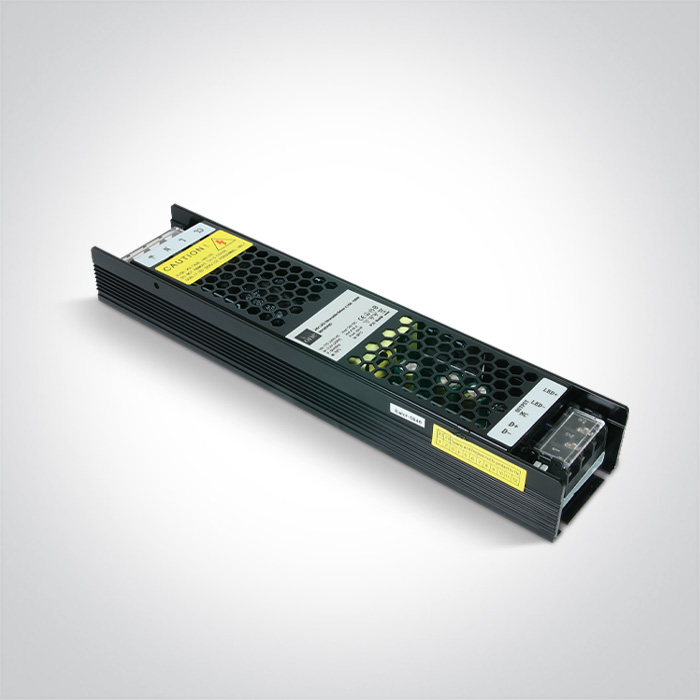

    100W 24V DC Triac &1-10V dimmable constant voltage driver, IP20.

    Complies with standard EN61347-1 and any other specific standards.
    Indoor
    IP
    Dimmable
    CE

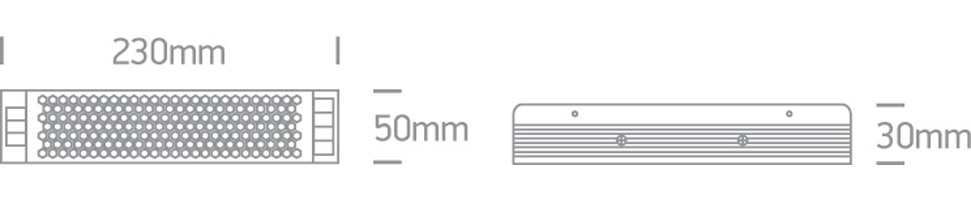

    Dimensions
    Downloads
    Product PDF Installation Manual Photo Download

    Physical Specification

    +
    Item Group
    23 Drivers
    Family
    The 24V DC Open Range Dimmable Constant voltage
    Order Code
    89100VND
    Material
    Metal
    Shape
    Rectangular
    Length
    230mm
    Width
    50mm
    Height
    30mm
    Indoor
    Yes

    Electrical Characteristics

    +
    Gear
    Gear Type
    Led Driver
    Input Voltage
    220-240V
    50 Hz
    Yes
    60 Hz
    Yes
    Power (Watts)
    100W
    Power Factor
    0,95
    Constant Voltage
    Yes
    24 V
    Yes
    IP Rating
    IP20
    Safety Class
    Dimmable
    Yes
    Dimmer type
    Triac, 1-10V
    Housing Material
    Metal
    Output Terminal
    Connector

    Packing Info

    +
    Box Weight
    0.325kg
    Pcs/Carton
    60
    Barcode
    5291889059882
    HS Code
    8504408390

    Certification & Warranty

    +
    Warranty
    3 years
    Wee Directive
    Yes
    Year in which the CE mark was affixed
    19
