22 Drivers > The 24V DC Open Range Constant voltage
89100VN

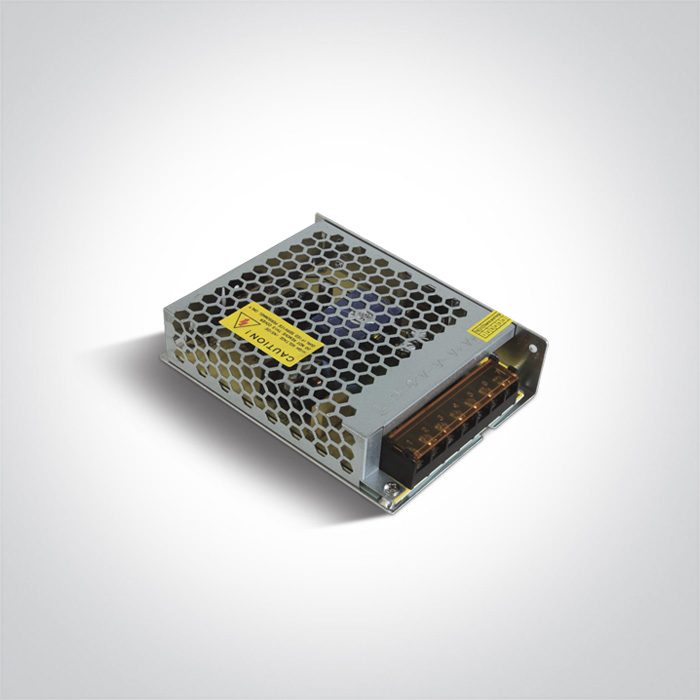

100W 24V DC constant voltage driver, Open Range IP20.
Complies with standard EN61347-1 and any other specific standards.
Complies with standard EN61347-1 and any other specific standards.

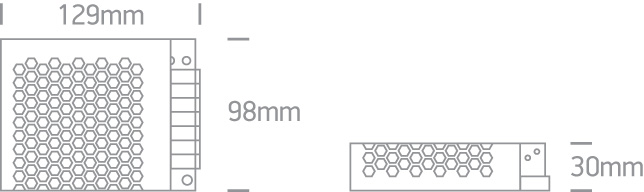

Dimensions
Downloads
.jpg){kind=small}
Physical Specification
Item Group
22 Drivers
Family
The 24V DC Open Range Constant voltage
Order Code
89100VN
Material
Metal
Shape
Rectangular
Length
129mm
Width
98mm
Height
30mm
Indoor
Yes
Electrical Characteristics
Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
100W
Power Factor
0,95
Constant Voltage
Yes
24 V
Yes
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
60ºC
Operating Temp
70ºC
Housing Material
Metal
Output Terminal
Connector
Packing Info
Box Length
13,8cm
Box Width
3,6cm
Box Height
10,3cm
Box Weight
0.357kg
Pcs/Carton
42
Barcode
5291889046073
HS Code
8504408390
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
16
