22 Drivers > The DIN RAIL Drivers

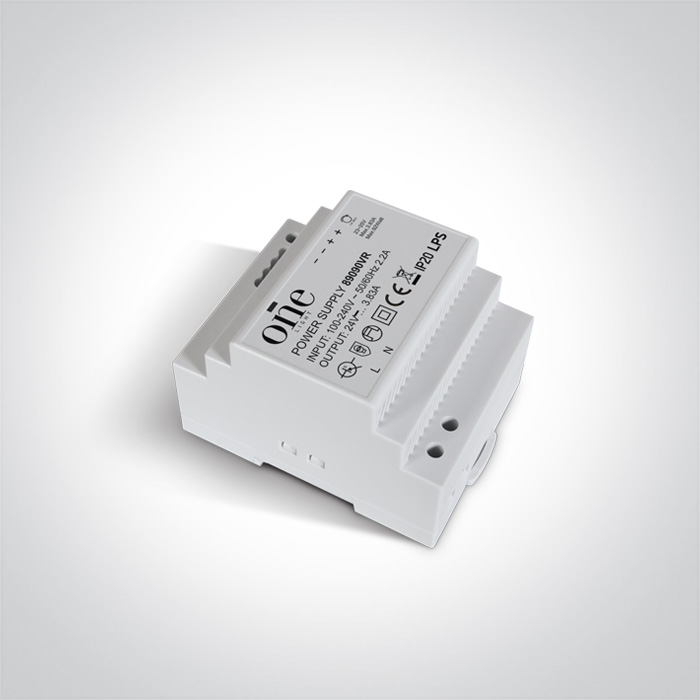

89090VR
90W 24V DC Dinrail constant voltage driver, IP20.
Complies with standard EN61347-1 and any other specific standards.
Complies with standard EN61347-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
22 Drivers
Family
The DIN RAIL Drivers
Order Code
89090VR
Material
Plastic
Shape
Rectangular
Length
68mm
Width
92mm
Height
58mm
Indoor
Yes
Electrical Characteristics
Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
90W
Power Factor
0,95
Constant Voltage
Yes
24 V
Yes
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Packing Info
Box Weight
0.280kg
Pcs/Carton
50
Barcode
5291889066347
HS Code
8504408390
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
