22 Drivers > The 12V DC Range Constant voltage
89075W
75W 12V DC Constant Voltage LED driver.
Complies with standard EN61347-1 and any other specific standards.
Complies with standard EN61347-1 and any other specific standards.

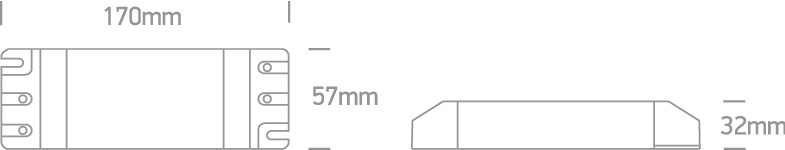

Dimensions
Downloads
Physical Specification
Item Group
22 Drivers
Family
The 12V DC Range Constant voltage
Order Code
89075W
Material
Plastic
Shape
Rectangular
Length
170mm
Width
57mm
Height
32mm
Indoor
Yes
Electrical Characteristics
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
75W
Power Factor
0,9
Constant Voltage
Yes
12 V
Yes
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
45ºC
Operating Temp
80ºC
Housing Material
Plastic
Output Terminal
Connector
Packing Info
Box Length
20,5cm
Box Width
7cm
Box Height
3,6cm
Box Weight
0.400kg
Pcs/Carton
25
Barcode
5291889039655
HS Code
8504408390
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
13
