New 2025 Edition 2 > Drivers
89044L
DALI & Push to DIM constant current dimmable LED driver for LED spots / LED fittings.
Adjustable output using DIP Switches.
Complies with standard EN61347-1 and any other specific standards.
Adjustable output using DIP Switches.
Complies with standard EN61347-1 and any other specific standards.

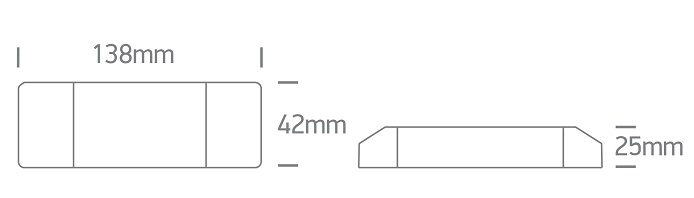

Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 2
Family
Drivers
Order Code
89044L
Material
Plastic
Shape
Rectangular
Length
138mm
Width
42mm
Height
25mm
Indoor
Yes
Electrical Characteristics
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
Refer to Table
Power Factor
0,95
Constant Current
Yes
700mA
20-50V
750mA
20-50V
800mA
20-50V
850mA
20-50V
900mA
20-48V
950mA
20-46V
1000mA
20-40V
1050mA
20-38V
IP Rating
IP20
Safety Class
Dimmable
Yes
Dimmer type
Dali, Push to Dim
Ambient Temp
45°C
Operating Temp
85°C
Housing Material
Plastic
Fast Connector
Yes
Fast Connector Type
One Light 700
Packing Info
Box Weight
0.206kg
Pcs/Carton
50
Barcode
5291889080657
HS Code
8504408390
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
24
