23 Drivers > The 700mA TRIAC Dimmable Range Constant current
89040AT

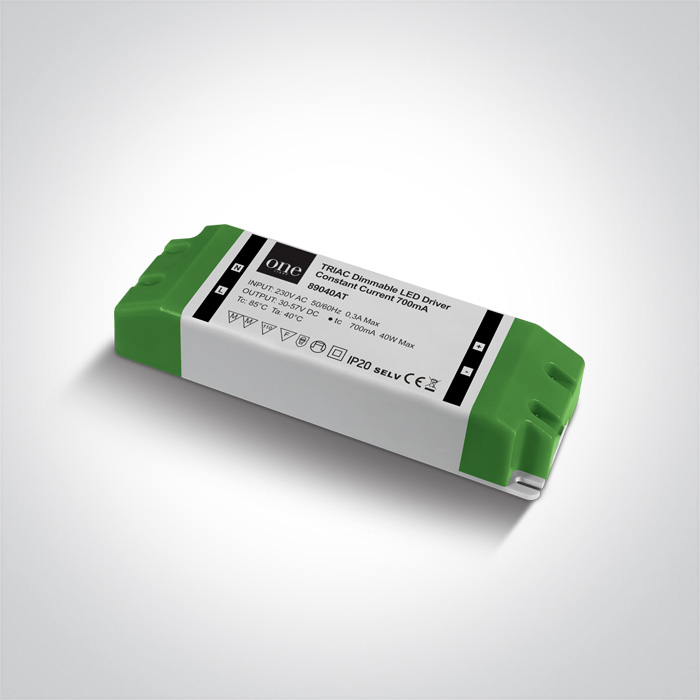

Constant current dimmable LED driver for 700mA LED spots / LED fittings, 21-40W.
Complies with standard EN61347-1 and any other specific standards.
Complies with standard EN61347-1 and any other specific standards.

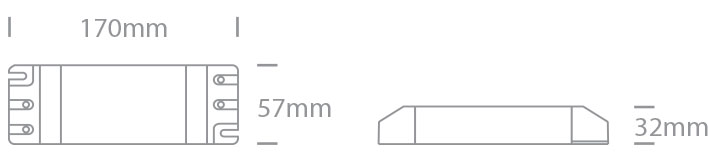

Dimensions
Downloads
Physical Specification
Item Group
23 Drivers
Family
The 700mA TRIAC Dimmable Range Constant current
Order Code
89040AT
Material
Plastic
Shape
Rectangular
Length
170mm
Width
57mm
Height
32mm
Indoor
Yes
Electrical Characteristics
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
21-40w
Power Factor
0,9
Constant Current
Yes
700mA
30-57v
IP Rating
IP20
Safety Class
Dimmable
Yes
Dimmer type
Triac
Ambient Temp
40ºC
Operating Temp
85ºC
Housing Material
Plastic
Output Terminal
Connector
Packing Info
Box Weight
0.280kg
Pcs/Carton
50
Barcode
5291889069812
HS Code
8504408390
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
