    • 22 Drivers > The TRIAC Dimmable Range Constant current

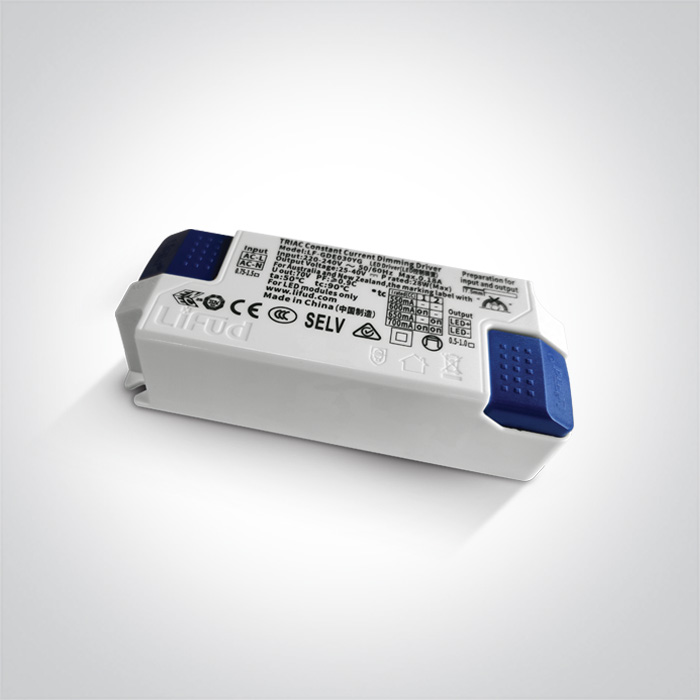

    89030UT
    89030UT
    Constant current dimmable LED driver for 500/550/600/600/700mA LED spots / LED fittings.

    Complies with standard EN61347-1 and any other specific standards.
    Indoor
    IP
    Dimmable
    CE
    Dimensions
    Downloads
    Product PDF Photo Download

    Physical Specification

    +
    Item Group
    22 Drivers
    Family
    The TRIAC Dimmable Range Constant current
    Order Code
    89030UT
    Material
    Plastic
    Shape
    Rectangular
    Length
    138mm
    Width
    44mm
    Height
    30mm
    Indoor
    Yes

    Electrical Characteristics

    +
    Gear
    Gear Type
    Led Driver
    Input Voltage
    220-240V
    50 Hz
    Yes
    60 Hz
    Yes
    Power (Watts)
    Refer to Table
    Power Factor
    >0,9
    Constant Current
    Yes
    500mA
    26-42V
    550mA
    26-42V
    600mA
    26-42V
    700mA
    26-42V
    IP Rating
    IP20
    Safety Class
    Dimmable
    Yes
    Dimmer type
    Triac
    Ambient Temp
    45ºC
    Operating Temp
    85ºC
    Housing Material
    Plastic
    Output Terminal
    Cable

    Packing Info

    +
    Box Weight
    0.136kg
    Pcs/Carton
    72
    Barcode
    5291889068778
    HS Code
    8504408390

    Certification & Warranty

    +
    Warranty
    5 years
    Wee Directive
    Yes
    Year in which the CE mark was affixed
    20
