22 Drivers > Marine Drivers for Yachts Constant current

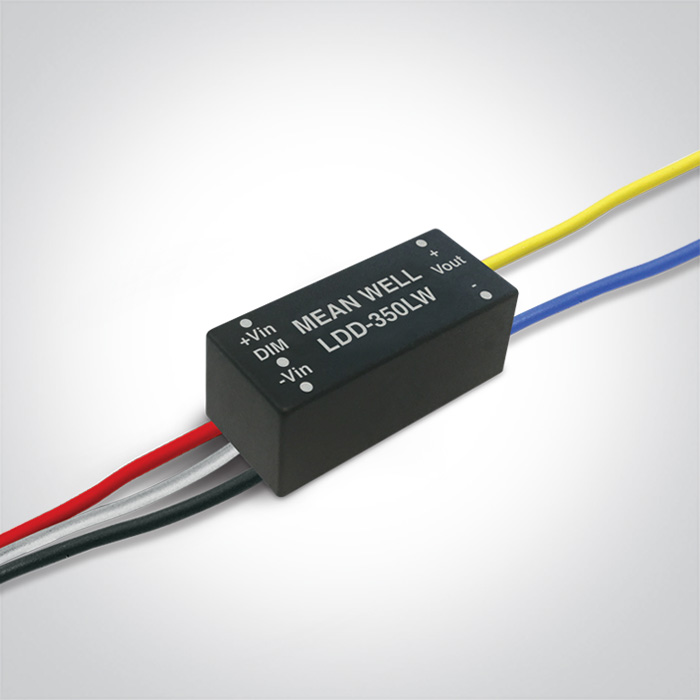

89028M
9-36V 350mA constant current PWM dimmable driver, ideal for marine applications.
Requires 12-24V constant voltage driver.
Complies with standard EN61347-1 and any other specific standards.
Requires 12-24V constant voltage driver.
Complies with standard EN61347-1 and any other specific standards.

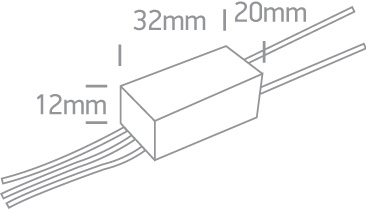

Dimensions
Downloads
Physical Specification
Item Group
22 Drivers
Family
Marine Drivers for Yachts Constant current
Order Code
89028M
Material
Plastic
Shape
Rectangular
Length
32mm
Width
20mm
Height
12mm
Indoor
Yes
Electrical Characteristics
Gear
Gear Type
Led Controller
Input Voltage
9-36V DC
Power (Watts)
4,2W@12V 8,4W@24V 11,2W@36V
Constant Current
Yes
350mA
32V
IP Rating
IP20
Safety Class
Dimmable
Yes
Housing Material
Plastic
Output Terminal
Connector
Packing Info
Box Weight
0.015kg
Pcs/Carton
240
Barcode
5291889055433
HS Code
8504408390
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
