89026AL
DALI & Push to DIM constant current dimmable LED driver for LED spots / LED fittings.
Adjustable output using DIP Switches.
Output:
160/200mA 30-50V
250/300/350/400/450/500mA 20-50V
550mA 20-47V
600mA 20-43V
650mA 20-40V
700mA 20-37V
Complies with standard EN61347-1 and any other specific standards.
Adjustable output using DIP Switches.
Output:
160/200mA 30-50V
250/300/350/400/450/500mA 20-50V
550mA 20-47V
600mA 20-43V
650mA 20-40V
700mA 20-37V
Complies with standard EN61347-1 and any other specific standards.

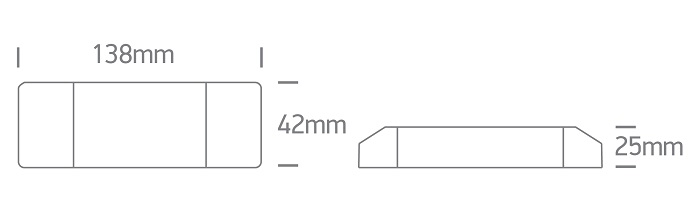

Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 2
Family
Drivers
Order Code
89026AL
Material
Plastic
Shape
Rectangular
Length
138mm
Width
42mm
Height
25mm
Indoor
Yes
Electrical Characteristics
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
Refer to Table
Power Factor
0,95
Constant Current
Yes
IP Rating
IP20
Safety Class
Dimmable
Yes
Dimmer type
Dali, Push to Dim
Ambient Temp
45°C
Operating Temp
80°C
Housing Material
Plastic
Fast Connector
Yes
Fast Connector Type
One Light 350+700
Packing Info
Box Weight
0.146kg
Pcs/Carton
50
Barcode
5291889080640
HS Code
8504408390
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
24
